41 21 682 Replacing Left B-Pillar Reinforcement (Rear Side Panel Removed)

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Observe procedure for REPAIR STAGE 3 .

Read contents of BODY, GENERAL .

Spot-weld bonding is used on this vehicle. Observe specific PROCEDURE .

Use only approved SPOT-WELDING APPARATUS for repairs.

Side panel removed

Place vehicle on straightening bench.

The following new body parts are required:

(1) Inner side frame
(2) Shaped part, B-pillar, bottom (not shown)
(3) Shaped part, B-pillar, outer (not shown)

Following CONSUMABLES are required:

Fig 1: Identifying New Body Parts Required

Courtesy of BMW OF NORTH AMERICA, INC.

Material	Quantity
Punch rivets N4	6

Removal of side frame (B-pillar reinforcement)

In addition to removal of side wall:

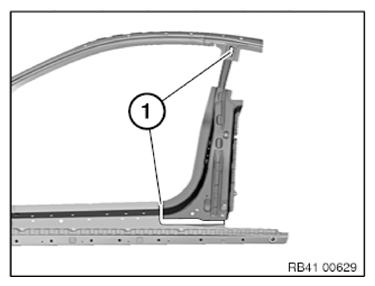

Mark severance cut in radius along line (1) and cut.

IMPORTANT: Cut outer metal panel only.

Open welded connections in areas (2).

Fig 2: Identifying Severance Cut Line And Welded Connections

Courtesy of BMW OF NORTH AMERICA, INC.

Cut reinforcement along line (1).

Open welded connections in areas (2).

Remove part section (3).

Installation note:

Part section (3) is used for installation.

Fig 3: Identifying Cutting Line, Part Section, And Welded Connections

Courtesy of BMW OF NORTH AMERICA, INC.

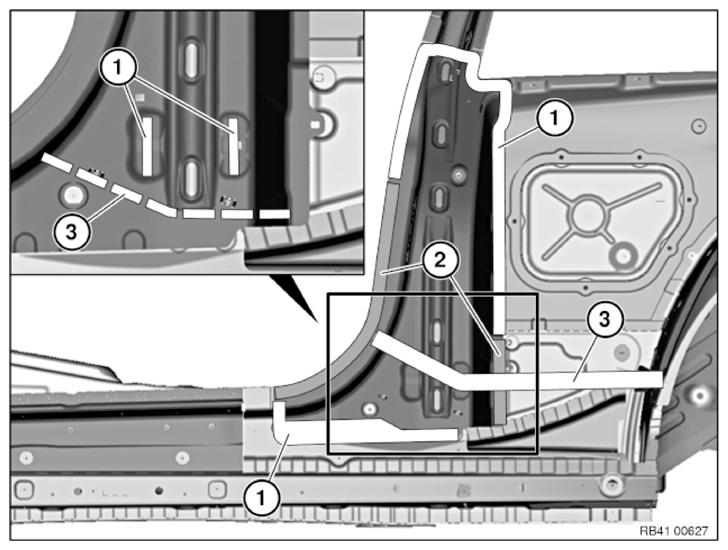

Open welded connections in areas (1).

LOOSEN spot-welded adhesive joints in areas (2).

Detach B-pillar reinforcement from cavity sealings (3) and remove.

Fig 4: Identifying Welded Connections, Spot-Welded Adhesive Joints, And Cavity Sealings

Courtesy of BMW OF NORTH AMERICA, INC.

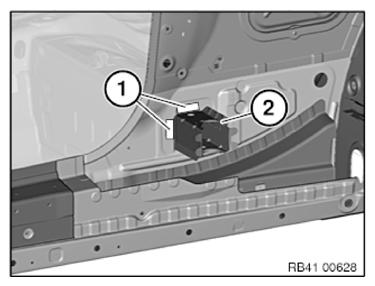

Undo metal active gas welded connections in areas (1) and remove support (2).

Fig 5: Identifying Support And Gas Welded Connections

Courtesy of BMW OF NORTH AMERICA, INC.

New part preparation

Open weld joints in areas (1) and remove components not required.

Fig 6: Identifying Welded Joints

Courtesy of BMW OF NORTH AMERICA, INC.

Installation of side frame (B-pillar reinforcement)

Coat CAVITY SEALINGS with sealant.

Install new parts with alignment bracket or universal mount and weld.

Divergent installation of the side wall:

In area (1) the side panel is bonded and then secured with punch rivets.

In area (2), the side panel is welded.

IMPORTANT: Risk of damage to adhesive.
Avoid generating excessive heat when making the welded connection (2).

Fig 7: Identifying Bonded/Riveted Areas And Welded Area

Courtesy of BMW OF NORTH AMERICA, INC.
