41 12 653 Replacing Luggage Compartment Floor, Left Section (Tail Panel And Side Panel Removed)

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Observe procedure for REPAIR STAGE 3 .

Read contents of BODY, GENERAL .

The following new body parts are required:

(1) Wheel arch extension

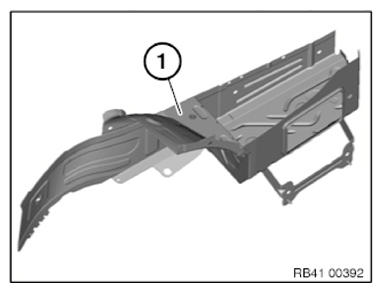

Fig 1: Identifying Wheel Arch Extension
Courtesy of BMW OF NORTH AMERICA, INC.

Removing luggage compartment floor on left:

Operation is described on the left side.

Right side identical.

Open welded connections in area (1).

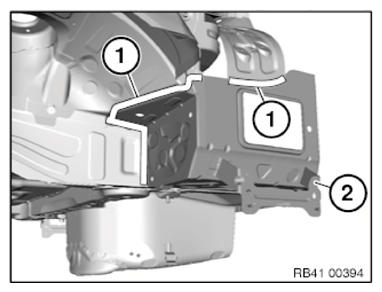

Fig 2: Identifying Welded Connections

Courtesy of BMW OF NORTH AMERICA, INC.

Open welded connections in areas (1).

Remove luggage compartment floor (2).

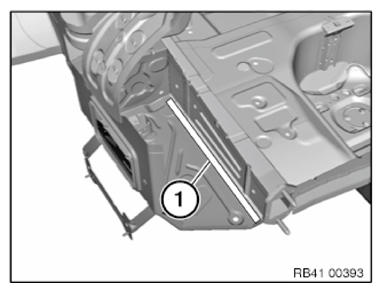

Fig 3: Identifying Luggage Compartment Floor And Welded Connections

Courtesy of BMW OF NORTH AMERICA, INC.

Preparation of new part:

Remove superfluous components from new part.

Adjust new part in combination with tail panel and side wall to fit and secure.

Installation of luggage compartment floor:

Install new part and weld.
