41 12 535 Stripping Operations - Replacing Luggage Compartment Floor And Both Side Members (Tail Panel Removed)

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Owing to the different engine variants and equipment specifications, not all the components are taken into consideration.
The following list basically represents the removal sequence.
  • Remove exhaust system (job number: 18 00 020)
  • Remove heat shields
  • Remove left and right trailing links (job number: 51 71 482)
  • Remove cross reinforcement (job number: 51 71 480)
  • If fitted: Remove active anti-roll bar at rear (job number: 37 12 220)
  • Remove carbon canister (FR number: 16 12 010)
  • Remove left and right rear wheel arch covers (job number: 51 71 041)

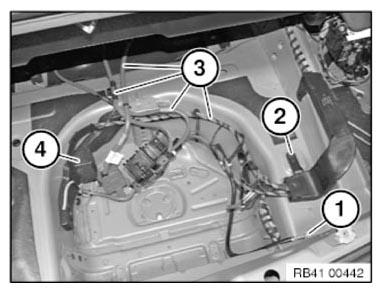

Undo nut (1) and remove negative battery cable.

Tightening torque 61 21 6AZ .

Undo nut (2) and cable channel.

Undo positive battery cables (3) from luggage compartment floor and put to one side with cable channel.

Remove battery crash pad (4).

Fig 1: Identifying Battery Crash Pad, Positive Battery Cables, Nut For Negative Battery Cable, And Nut For Cable Channel
G10040105Courtesy of BMW OF NORTH AMERICA, INC.

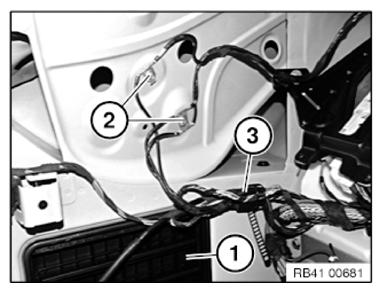

Undo latch mechanisms and remove rear bleeder (1).

Release screws (2) and wiring harness and place to one side.

Release wiring harness (3) and place to one side.

Installation note:

The rear ventilation (1) must not be damaged. (watertightness).

All latch mechanisms must engage audibly.

Fig 2: Identifying Rear Bleeder, Wiring Harness, And Screws
G10062221Courtesy of BMW OF NORTH AMERICA, INC.

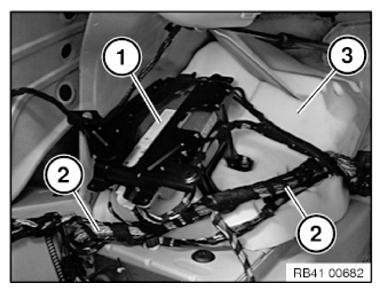

Release screw connections/plug connections and remove holder (1) with control unit.

Release wiring harness (2) and place to one side.

Remove insulating mat (3).

Fig 3: Identifying Wiring Harness, Holder And Insulating Mat
G10062222Courtesy of BMW OF NORTH AMERICA, INC.

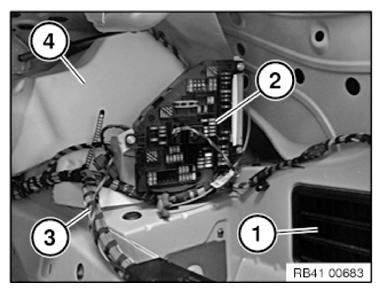

Undo latch mechanisms and remove rear bleeder (1).

Undo screws for fuse box (2). Put fuse box to one side.

Release wiring harness (3) and place to one side.

Remove insulating mat (4).

Fig 4: Identifying Rear Bleeder, Fuse Box, Insulating Mat And Wiring Harness
G10062223Courtesy of BMW OF NORTH AMERICA, INC.
