41 00... Use Of Materials In Outer Skin
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

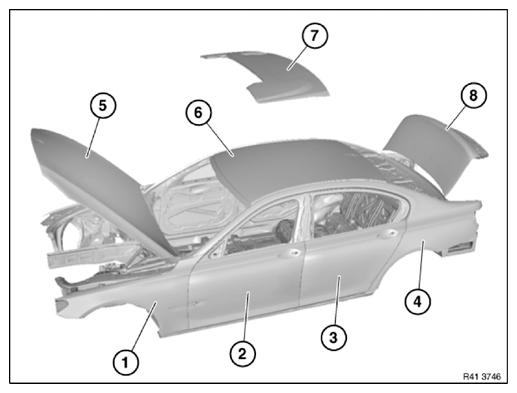

The following illustration is a schematic diagram of all the body variants.
Apply this illustration to the relevant vehicle.
| Component | Vehicle | Material |
|---|---|---|
| (1) Side wall, front | F01, F02, F04, F10, F11, F18, F80, F82, F83 | Aluminium |
| F06, F12, F13, F15, F16 | Plastic | |
| F20, F21, F22, F23, F25, F26, F30, F31, F32, F33, F34, F35, F36 | Steel | |
| (2) Door, front | F01, F02, F04, F06, F07, F10, F11, F12, F13, F18 | Aluminium |
| F20, F21, F22, F23, F25, F26, F30, F31, F32, F33, F34, F35, F36, F80, F82, F83 | Steel | |
| (3) Door, rear | F01, F02, F04, F06, F07, F10, F11, F18 | Aluminium |
| F20, F25, F26, F30, F31, F34, F35, F36 | Steel | |
| (5) Engine compartment lid | F01, F02, F04, F06, F07, F10, F11, F12, F13, F15, F16, F18, F80, F82, F83 | Aluminium |
| F20, F21, F22, F23, F25, F26, F30, F31, F32, F33, F34, F35, F36 | Steel | |
| (6) Hardtop/roof | F01, F02, F04 | Aluminium |
| F06, F07, F10, F11, F13, F15, F16, F18, F20, F21, F22, F25, F26, F30, F31, F32, F33, F34, F35, F36 | Steel | |
| F82 | Carbon | |
| (7) Soft top compartment lid | F12 | Plastic |
| F23, F33 | Steel | |
| (8) Tailgate | F07 | Aluminium |
| F06, F12, F13, F82 | Plastic | |
| F01, F02, F04, F10, F11, F15, F16, F18, F20, F21, F22, F23, F25, F26, F30, F31, F32, F33, F34, F35, F36, F80 | Steel |
