41 00... Repair Solution For Straight Shank/Hexagon Rivet Nut

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Protective measures.

Wear safety goggles
Wear protective gloves

IMPORTANT: To prevent the material from tapering, do not drill out the rivet head.

Carefully spot-drill rivet head with a larger drill bit/countersink

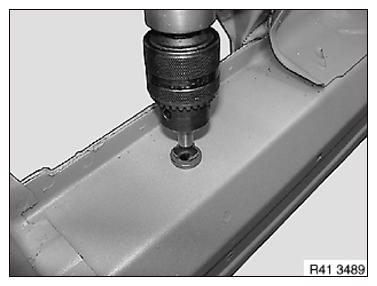

Fig 1: Spot-Drilling Rivet Head
Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Avoid paint damage
Knock rivet head away with a chisel

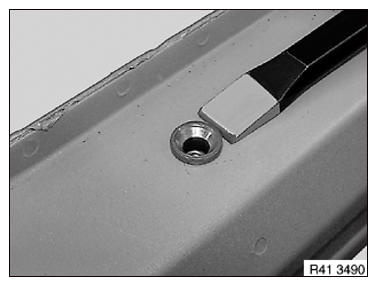

Fig 2: Removing Rivet Head Using Chisel
Courtesy of BMW OF NORTH AMERICA, INC.
Punch through rivet shank into cavity, remove if necessary

Fig 3: Punching Through Rivet Shank Into Cavity
Courtesy of BMW OF NORTH AMERICA, INC.
Clean component, eliminate paint damage if necessary

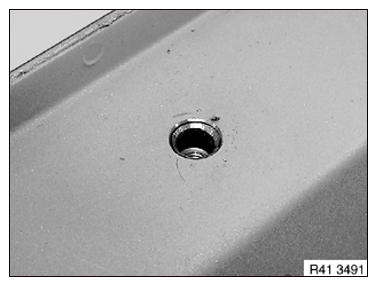

Fig 4: Identifying Bore Hole
Courtesy of BMW OF NORTH AMERICA, INC.

If the rivet shank can be removed:

IMPORTANT: To avoid corrosion, stop chips/debris by means of cavity preservation.

Follow NOTES ON CORROSION PROTECTION .
Preserving cavity

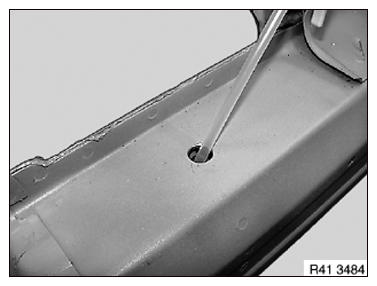

Fig 5: Preserving Cavity
Courtesy of BMW OF NORTH AMERICA, INC.

If the rivet shank cannot be removed:

WARNING: Danger of injury.
Observe NOTES ON CAVITY FOAM .

IMPORTANT: To avoid corrosion and rattling noises, stop chips/debris and rivet nut shank with cavity foam.
Remove foam remnants with isohexane (benzine).

Fig 6: Preserving Cavity

Courtesy of BMW OF NORTH AMERICA, INC.

5. Stop rivet shank by means of specific foaming
6. Set rivet nut with hand rivet gun
NOTE: Fit rivet nut as quickly as possibly, ideally before the cavity foam hardens.

Hexagon/straight shank rivet nut (up to thread M8) with hand rivet gun ZS308

IMPORTANT: Follow manufacturer's operating instructions.
Make sure rivet nut correctly contacts component.

NOTE: According to the manufacturer, the pictured tool is suitable up to an M8 thread (see BMW Aftersales Assistance Portal (ASAP) - Service/Technology - Workshop Equipment (Start BMW) - Workshop Equipment Shop).

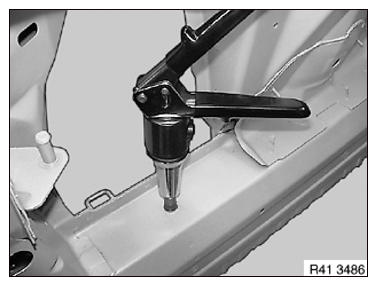

Fig 7: Setting Rivet Nut Using Hand Rivet Gun

Courtesy of BMW OF NORTH AMERICA, INC.

Hexagon/straight shank rivet nut (up to thread M12) with hand rivet gun MB512

IMPORTANT: Follow manufacturer's operating instructions.
Make sure rivet nut correctly contacts component.

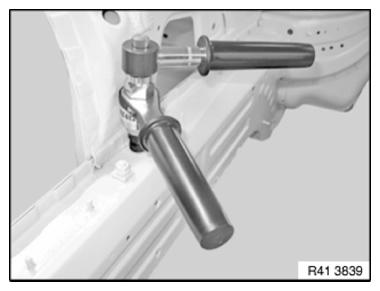

Fig 8: Identifying Hand Rivet Gun MB512

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: According to the manufacturer, the pictured tool is suitable up to an M12 thread (see BMW Aftersales Assistance Portal (ASAP) - Service/Technology - Workshop Equipment (Start BMW) - Workshop Equipment Shop).
