41 00... Reinforcement Plate With Stud Bolt (Bonded)

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

In the case of partial replacement, a body component is cut at the point described in the repair instructions.

A reinforcement plate is bonded in to ensure sufficient strength.

Reinforcement plates are available as new parts and must also be used.

NOTE: The following graphics serve as general illustrations of reinforcement plate repair work. They apply to the sectional repairs on the outer skin which are produced using the adhesive joining method.

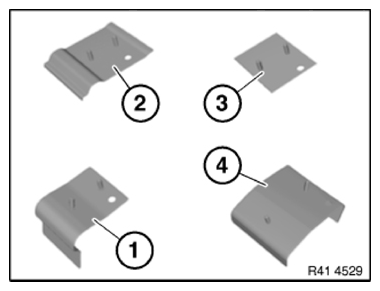

Overview of reinforcement plates:

Reinforcement plate, sill
Reinforcement plate, C-pillar
Reinforcement plate, universal
Reinforcement plate, C- or D-pillar
Nuts (not shown)
- Plastic nut dia. 18 mm, part number 07 14 1 943 122
- Expansion nut dia. 22 mm, part number 07 14 7 169 847

  Fig 1: Overview Of Reinforcement Plates
  Courtesy of BMW OF NORTH AMERICA, INC.

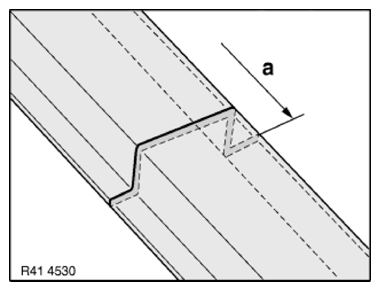

Mark component in accordance with Dimension "a" and cut.

Fig 2: Identifying Cutting Area

Courtesy of BMW OF NORTH AMERICA, INC.

Preparation of new part:

Some of the reinforcement plates are oversized.

If applicable, it is necessary to rework reinforcement plates at the edges or cut them to size until the reinforcement plates are in tension-free contact with the outer skin.

It must be possible to push the reinforcement plates into the body without shearing off the adhesive.

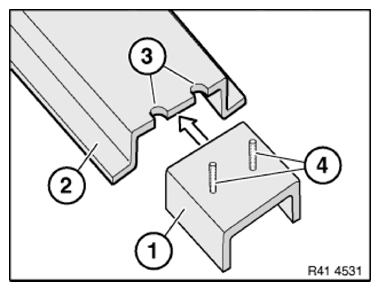

Adjust reinforcement plate (1) to fit in component (2) on vehicle.

Make semicircular recesses (3) for the stud bolts (4).

Diameter of recesses approx. 10 - 12 mm.

Fig 3: Preparing New Part

Courtesy of BMW OF NORTH AMERICA, INC.

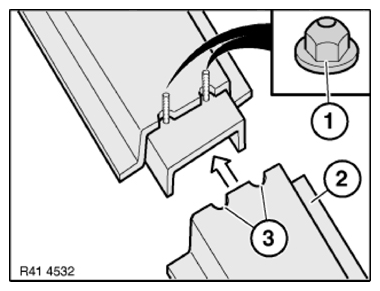

Secure reinforcement plate by screwing on nuts (1).

Fit new part (2). Make recesses (3) in new part in a semicircular shape.

Diameter of recesses approx. 10 - 12 mm.

Remove reinforcement plate again.

NOTE: Width of joint between new part and component on vehicle approx. 5 - 8 mm (at least 30 mm flange width per side).

Fig 4: Fitting New Part

Courtesy of BMW OF NORTH AMERICA, INC.

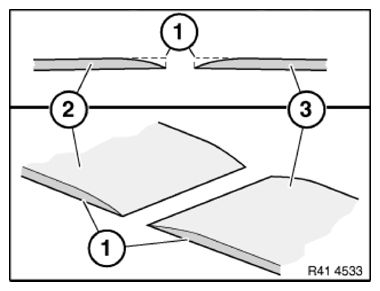

Chamfer cutting edges (1) on joint by grinding.

(2) Component on vehicle

(3) New part

Installation note:

If the cutting edges have not been sufficiently chamfered, there may be voids in the paintwork after painting.

Fig 5: Identifying Cutting Edges, Component On Vehicle, And New Part

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Do not grind new part and body in area of bonding surfaces.

Procedure for using universal reinforcement plate:

The universal reinforcement plate needs to be adapted. The plate must be divided if the distance between the pins is too great.

Dimension "a" is between 40 and 80 mm depending on the space available.

Secure plates with N4 punch rivets.

NOTE: Ensure the rivet is positioned correctly.

Fig 6: Identifying Dimension For Universal Reinforcement Plate

Courtesy of BMW OF NORTH AMERICA, INC.

Rivet head is on the adhesion side.

Rivet the plate to the inside of the flange.

Installing reinforcement plate

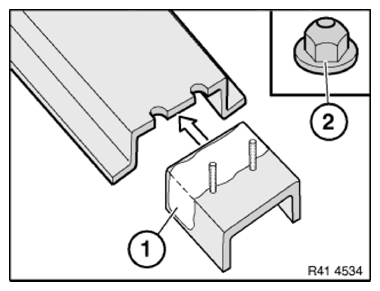

Clean all bonding surfaces.

Apply adhesive to reinforcement plate in area (1).

Apply more adhesive in the radii to avoid air pockets.

Apply additional adhesive to the outer skin around radii.

Carefully slide reinforcement plate into component on vehicle and secure by screwing on nuts (2). Screw on nuts a few turns only.

Fig 7: Installing Reinforcement Plate

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: When joining reinforcement plate, make sure there is sufficient adhesive on bonding surfaces.

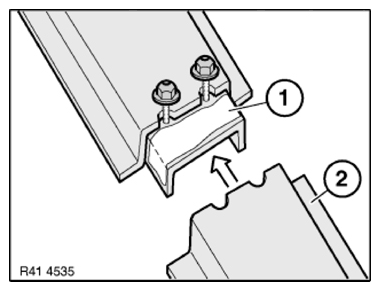

Apply adhesive to reinforcement plate bonding surface (1).

Apply more adhesive in the radii to avoid air pockets.

Apply additional adhesive to the outer skin around radii.

Fit new part (2).

Align new part to adjoining component and secure with gripping pliers.

First tighten nuts at the radii.

Only then tighten all nuts in the flat areas.

Fig 8: Fitting New Part

Courtesy of BMW OF NORTH AMERICA, INC.

Tightening torque 41 14 1AZ .

IMPORTANT: Check that the transition of the components is OK at the separation point. Corrections can only be made before the adhesive has hardened. Straightening at a later stage is not possible.

Concluding tasks at separation point:

After adhesive has hardened:

In area visible to customer:

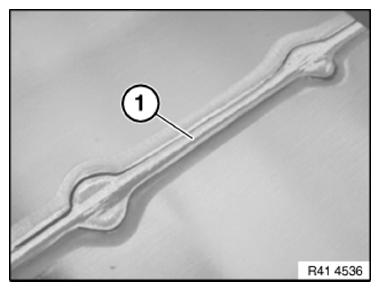

Cut off stud bolts with bodywork saw.

Completely remove adhesive residue in joint (1).

Round off sharp edges by grinding.

IMPORTANT: Avoid heating the separation point by excessive grinding.
Reworking by pressing not permitted.

Fig 9: Fitting New Part

Courtesy of BMW OF NORTH AMERICA, INC.

Only the BMW-approved METAL FILLER should be used on the joint.

METAL FILLER - INSTRUCTIONS FOR USE

Not in area visible to customer:

Examples: The joint is covered by sill trim panel, windows, seals, etc.

Grind off stud bolts and surplus adhesive flush. Do not use metal filler.

Paint area as specified in BMW Painting Handbook.

NOTE: After painting, the joint becomes visible as the adhesive shrinks. This has no affect on the quality.
