41 00... Reinforcement Plate (Bonded)

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

In the case of a partial replacement piece, a body component is cut at a point described in the repair instructions.

A reinforcement plate is bonded in to ensure sufficient strength.

Observe procedure for REPAIR STAGE 2 .

NOTE: The following graphics serve as general illustrations of reinforcement plate repair work. They apply to sectional repairs to the structure.

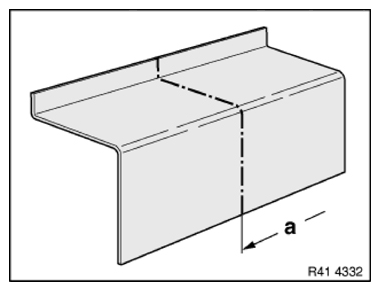

Mark component in accordance with measurement "a" and cut.

Fig 1: Identifying Reinforcement Plate Cutting Area
G10062085Courtesy of BMW OF NORTH AMERICA, INC.

Preparation of new part:

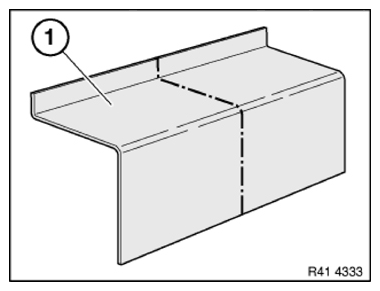

Cut new part (1) in accordance with cut on vehicle and if necessary adjust to fit with straightening attachment or universal mount.

Fig 2: Cutting New Part
G10062086Courtesy of BMW OF NORTH AMERICA, INC.

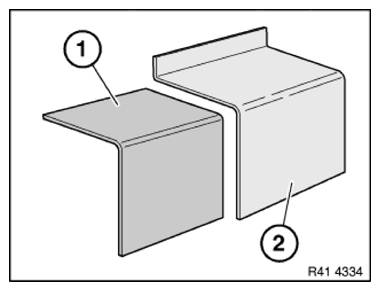

Make reinforcement plate (1) from trim of new part (2).

Length of reinforcement plate is 80 mm.

Fig 3: Making Reinforcement Plate From Trim Of New Part
G10062087Courtesy of BMW OF NORTH AMERICA, INC.

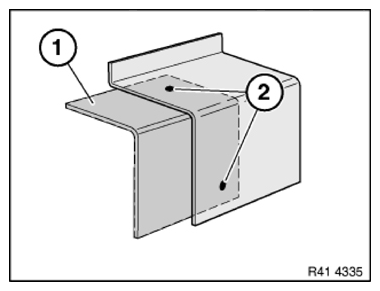

Slide reinforcement plate (1) half-way into component on body and fasten with 2 self-tapping screws (2).

Fig 4: Sliding Reinforcement Plate Half-Way Into Component And Fastening With Self-Tapping Screws
G10062088Courtesy of BMW OF NORTH AMERICA, INC.

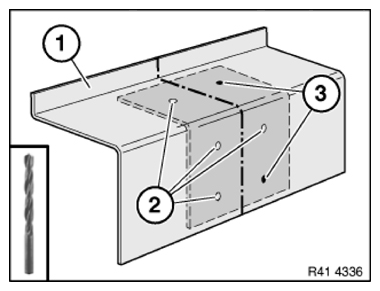

Adjust new part (1) to fit and set 4.3 mm dia. bore holes (2).

Remove new part again.

Release self-tapping screws (3).

Remove reinforcement plate.

Drill out bore holes (3) for screws to 4.3 mm dia.

Deburr all bore holes.

Fig 5: Identifying New Part And Bore Holes
G10062089Courtesy of BMW OF NORTH AMERICA, INC.
IMPORTANT: Do not grind new part and body in area of bonding surfaces.

Installing reinforcement plate

Clean all  bonding surfaces with cleaning agent R1.

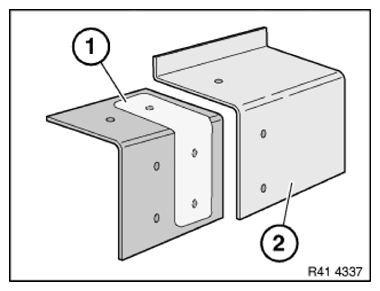

Apply adhesive (1) to reinforcement plate bonding surface.

Carefully slide reinforcement plate half-way into body component (2).

IMPORTANT: When joining reinforcement plate, make sure there is sufficient adhesive on bonding surfaces.
Fig 6: Identifying Adhesive Application Area On Reinforcement Plate
G10062090Courtesy of BMW OF NORTH AMERICA, INC.

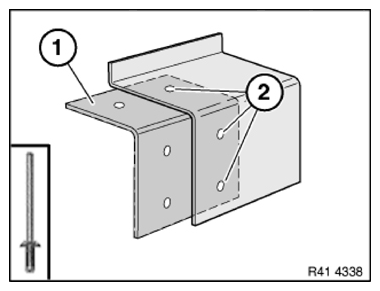

Rivet reinforcement plate (1) up to half-way with blind rivets N3 (2).

Fig 7: Riveting Reinforcement Plate
G10062091Courtesy of BMW OF NORTH AMERICA, INC.

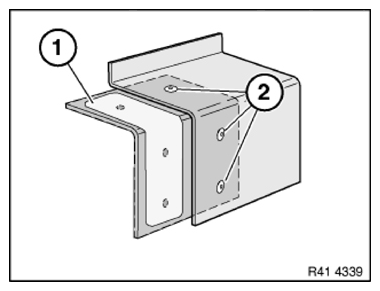

Apply adhesive (1) to reinforcement plate bonding surface.

Fig 8: Identifying Adhesive Application Area On Reinforcement Plate Bonding Surface
G10062092Courtesy of BMW OF NORTH AMERICA, INC.

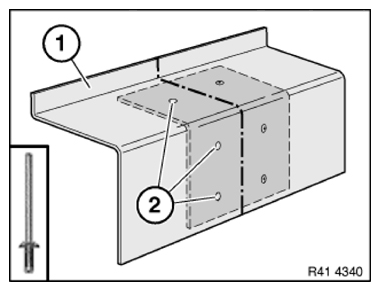

Install new part (1) with straightening attachment or universal mount and rivet with blind rivets N3 (2).

After adhesive has hardened, flatten adhesive area and seal blind rivets.

Fig 9: Installing New Part
G10062093Courtesy of BMW OF NORTH AMERICA, INC.
