00 11..... Draining/topping up gear oil in manual transmission

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2007 BMW 530i, 2007 BMW 525i, 2006 BMW 530i, 2006 BMW 525i, and 2005 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Gearbox must be at normal operating temperature.
Gear oil:

Refer to OPERATING FLUIDS - MANUAL TRANSMISSION .
Filling capacities:
Refer to DRAINING/TOPPING UP GEAR OIL IN MANUAL TRANSMISSION .

Draining gear oil:

Release oil drain plug (1) and filler plug (2).
Clean oil drain plug (1) and screw in.

Fill transmission with gear oil.

Pour in gear oil until overflowing.
Tighten in filler screw (2).

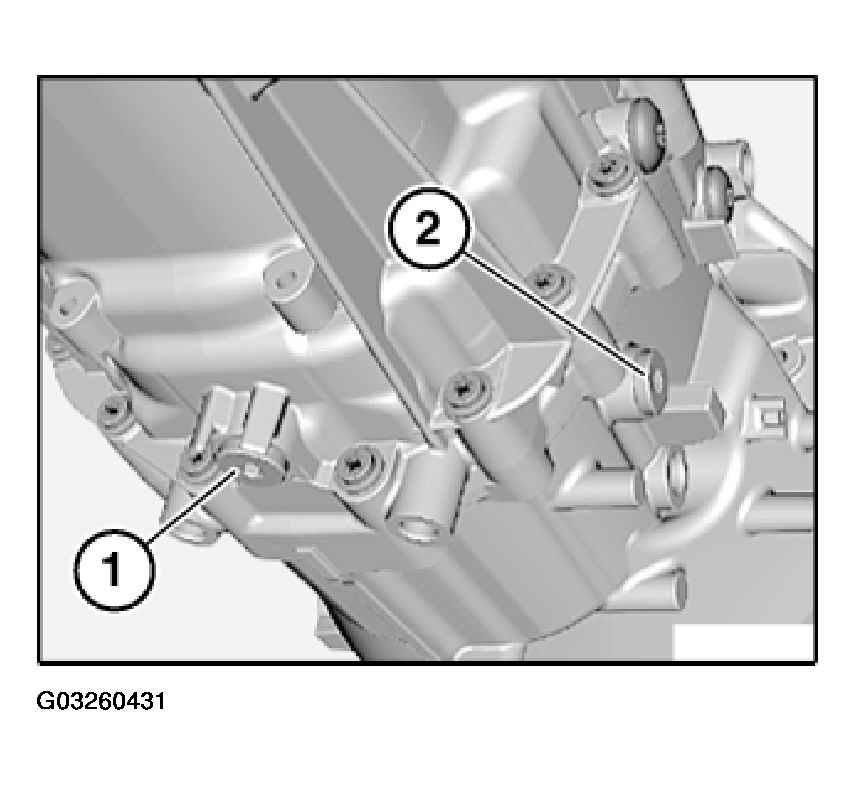

Fig 1: Releasing Oil Drain Plug And Filler Plug

Courtesy of BMW OF NORTH AMERICA, INC.
