00 11 259 Replenishing / changing rear differential oil

Failure to comply with this instruction will result in serious damage to the rear differential!

Replenishing rear differential oil:

Undo oil filler plug (1).

Check rear differential oil level.

If necessary, pour in rear differential oil up to lower edge of opening for oil filler plug (1).

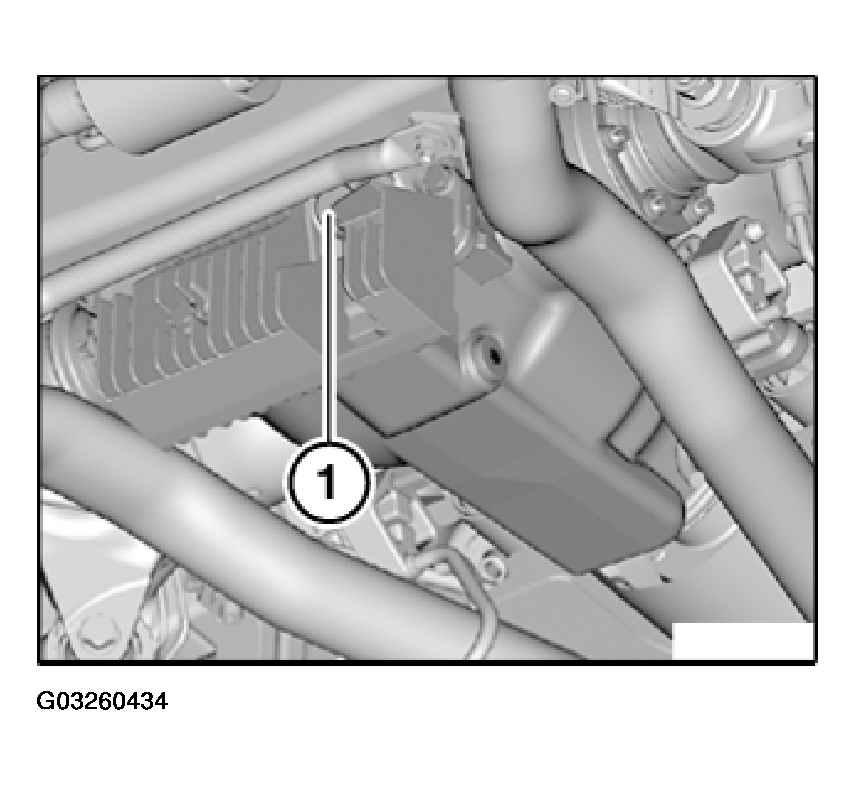

Fig 1: Undoing Oil Filler Plug

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

1. Oil filler plug with sealing ring:

   Replace sealing ring (1).

2. Oil filler plug with O-ring:

   Replace oil filler plug (2).

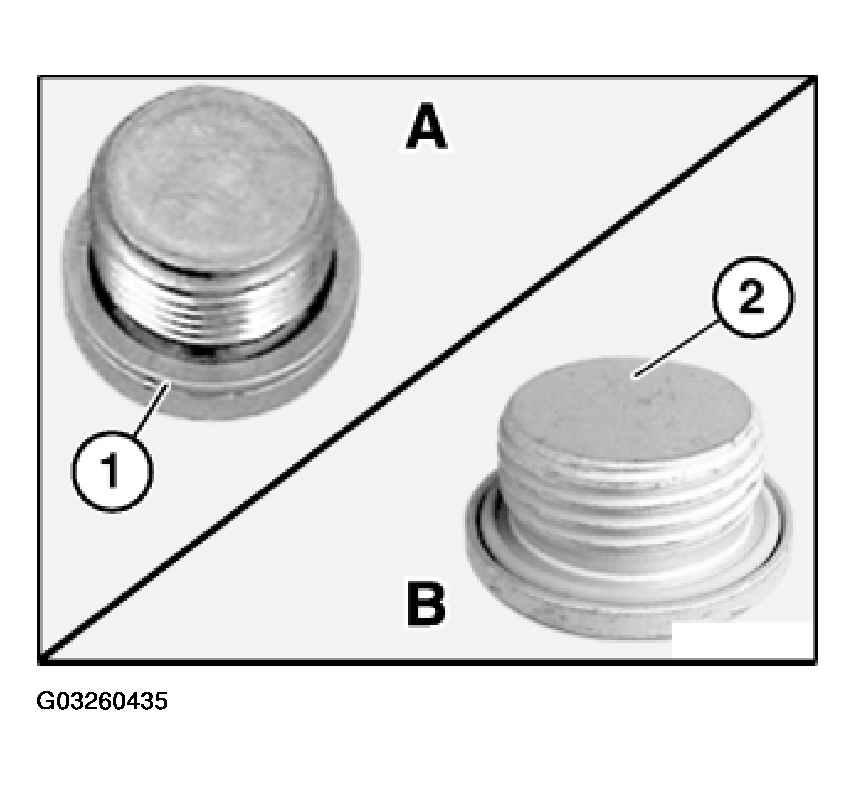

Fig 2: Identifying Oil Filler Plug

Courtesy of BMW OF NORTH AMERICA, INC.

Changing Rear Differential Oil:

Recycling:

Catch and dispose of emerging differential oil.

Observe country-specific waste-disposal regulations

Place oil collecting apparatus underneath.

Remove oil drain plug (1).

Drain and dispose of differential oil.

Undo oil filler plug (2).

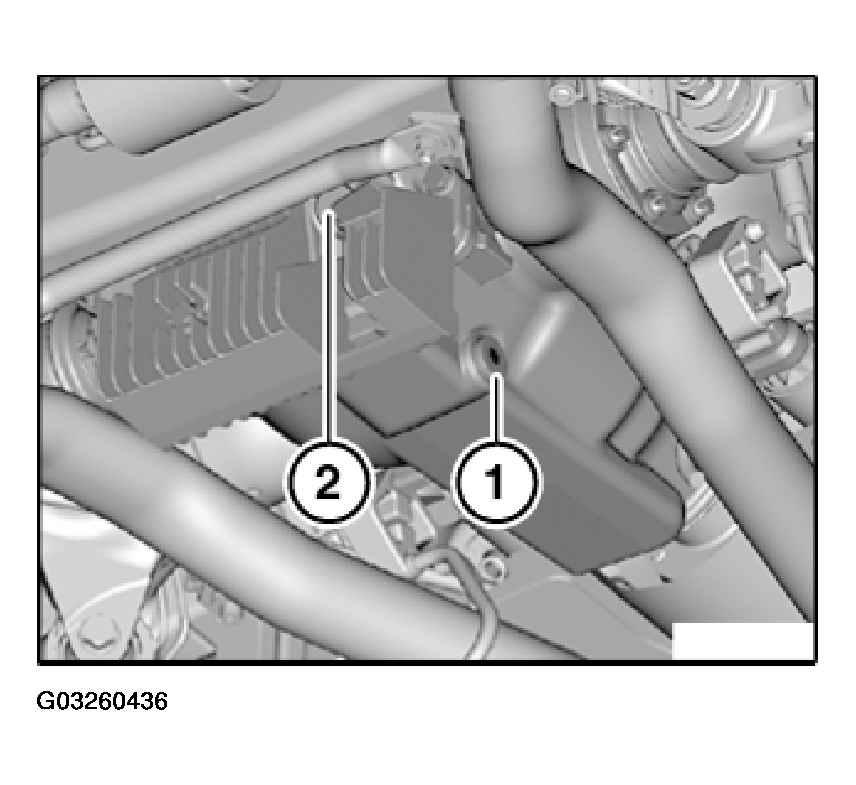

Fig 3: Removing Oil Drain Plug

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

1. Oil drain plug with sealing ring:

   Replace sealing ring (1).

2. Oil drain plug with O-ring:

   Replace oil drain plug (2).

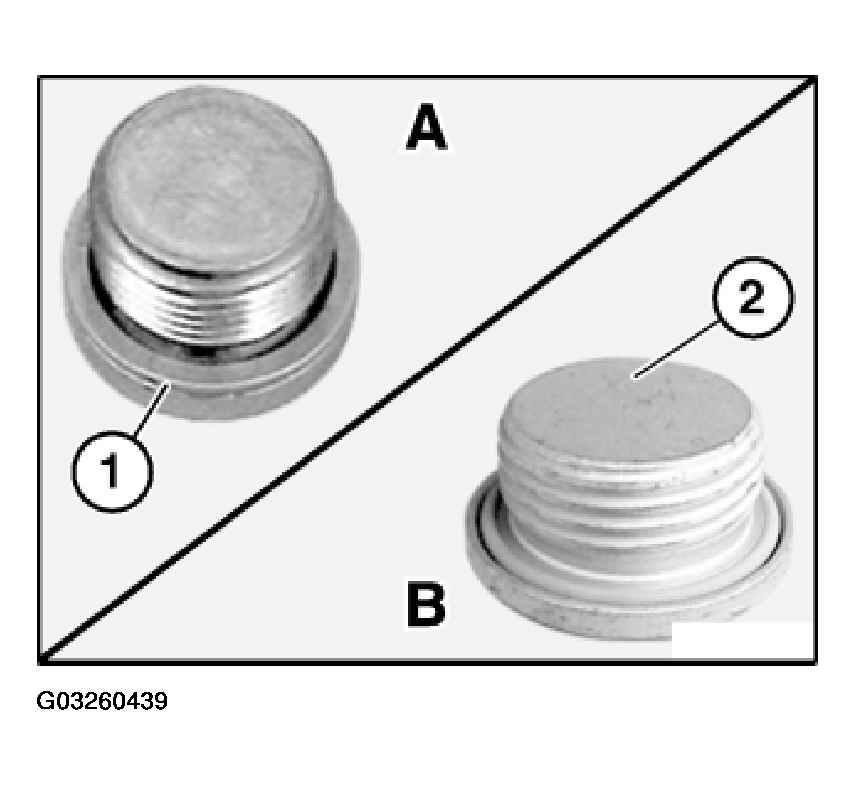

Fig 4: Identifying Oil Filler Plug

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Pour in rear differential oil up to lower edge of opening for oil filler plug (1).

Fig 5: Installing Oil Drain Plug

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

1. Oil filler plug with sealing ring:

   Replace sealing ring (1).

2. Oil filler plug with O-ring:

   Replace oil filler plug (2).

Fig 6: Identifying Oil Filler Plug

Courtesy of BMW OF NORTH AMERICA, INC.
