33 10 036 Removing and installing/replacing adapter on rear axle differential (M6)

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

Necessary preliminary tasks:

Remove EXHAUST SYSTEM .
Remove trailing left.
Remove rear heat shield.

23 4 050 Position special tool on workshop jack. 00 2 030

23 4 050 Support rear axle final drive unit with special tool.

Secure rear axle differential to special tool 23 4 050 with tensioning straps.

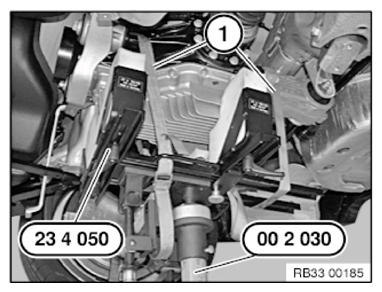

Fig 1: Positioning Special Tool (23 4 050)

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew nuts (1).

Remove screws with absorber weight (2).

Installation note:

Renew screws and nuts (1).

Adhere to the assembly sequence at the end of the document in order to prevent distortion of the rear axle differential during installation and thereby avoid potential complaints about noise.

Fig 2: Identifying Rear Axle Differential Absorber Weight And Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Release nut and screw (1).

Installation note:

Replace nut (1).

Fig 3: Identifying Axle Differential Adapter Nut And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Carefully lower rear axle differential.

IMPORTANT: Risk of damage!
Output shafts must not rest on pivot arms!
Watch out for cable lengths!

Fig 4: Supporting Rear Axle Differential

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque 33 17 6AZ .

Remove adapter (2).

Fig 5: Identifying Adapter Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Release screw (1).

Tightening torque 33 11 10AZ .

Remove vibration absorber (2).

Installation note:

Insert screw (1) with Loctite.

Remove any adhesive residue from the thread.)

Fig 6: Identifying Vibration Absorber Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Assembly sequence:

Press rear axle differential (2) to the top with special tool 23 4 050 and 00 2 030 .
Screw in screw and nut (3) (do not apply tightening force).
Insert screws with absorber weight and nuts (1) (do not apply tightening force).
Release tensioning strap, lower special tools 23 4 050 and 00 2 030 and move away.
Apply tightening force to screws and nuts (1).

Fig 7: Identifying Rear Axle Differential Screw And Nut
Courtesy of BMW OF NORTH AMERICA, INC.

Tightening torque 33 17 1AZ .
Apply tightening force to screw and nut (3).
Tightening torque 33 17 2AZ .
