36 11 105 Removing and installing RDC (Tire Pressure Control) control unit (LOW COST)
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE
(ESD protection).

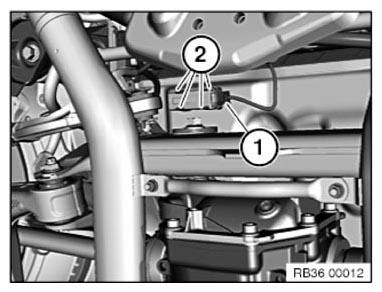

Disconnect plug connection (1).
Lightly push the retaining tabs (2) apart.
Pull out TPC control unit.
Replacement:
- Carry out programming/encoding
