18 40 010 Removing and installing/renewing left exhaust manifold (N63O1)

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Risk of burning!
Only perform this repair work on an engine that has cooled down.

Necessary preliminary tasks:

Remove left TURBOCHARGER .
Remove right TURBOCHARGER .
Remove ALTERNATOR

Release screws (1).

Tightening torque 11 65 6AZ

Fig 1: Identifying Screws

G06178815

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque 11 65 6AZ

Remove heat shield (2).

Fig 2: Identifying Heat Shield And Screws

G06178816

Courtesy of BMW OF NORTH AMERICA, INC.

Release nuts 1 to 8.

Remove exhaust manifold, bank 2.

Installation note:

Replace gasket.

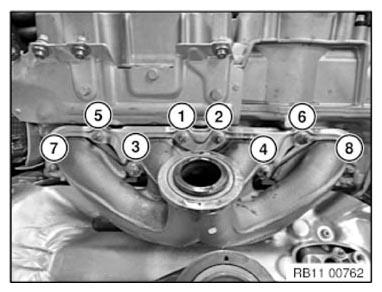

Fig 3: Left Exhaust Manifold Nuts Tightening/Loosening Sequence (N63 B40/B44 O 1)

G09876688

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Replace gasket (1) for bank 2.

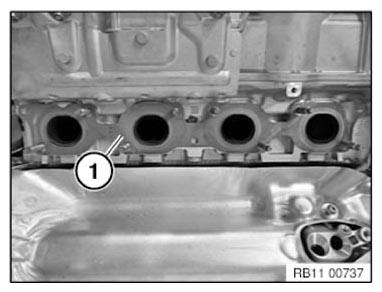

Fig 4: Identifying Gasket For Bank 2

G09876689

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Replace gasket on exhaust manifold.

Installation note:

Check locating apparatus on exhaust manifold.

Fig 5: Identifying Exhaust Manifold Locating Apparatus

G06178785

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten all nuts in sequence (1 to 8).

Tightening torque: 11 62 1AZ .

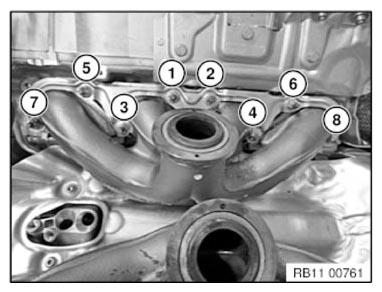

Fig 6: Left Exhaust Manifold Nuts Tightening/Loosening Sequence (N63 B40/B44 O 1)

G09876691

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
