18 32 060 Removing and installing/renewing catalytic converters for cylinders 5-8 (N63O1)

Necessary preliminary tasks:

• Remove upper HEAT SHIELD .
• Remove EXHAUST SYSTEM .
• Remove the front bulkhead SOUND INSULATION .
• Remove VACUUM PUMP .
• Remove both monitoring sensors. See REPLACING LEFT MONITORING SENSOR and REPLACING RIGHT MONITORING SENSOR .

Release screw (1) from heat shields (2) and (3).

Screw (1) is located between the catalytic converters.

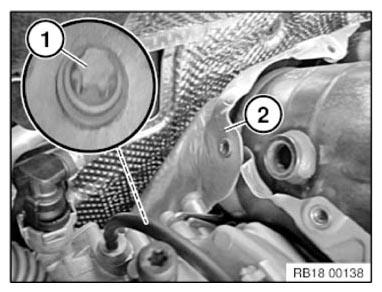

Fig 1: Identifying Heat Shields And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1) on heat shield at bottom right.

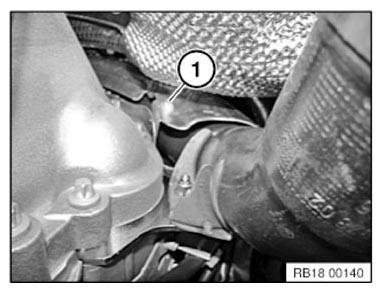

Fig 2: Identifying Heat Shield Screw (Bottom Right)

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1) on right heat shield.

Unclip and remove the right heat shield.

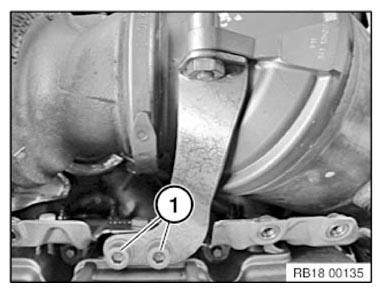

Fig 3: Identifying Screws On Right Heat Shield

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1) on heat shield at bottom left.

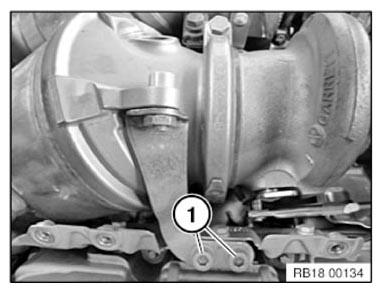

Fig 4: Identifying Heat Shield Screws (Bottom Left)

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1) on right left shield.

Unclip and remove the heat shield (2) on the left.

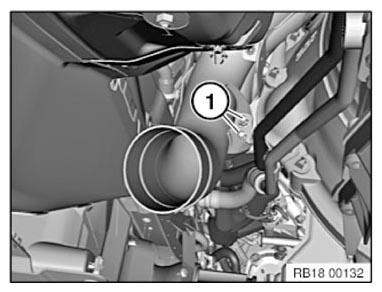

Fig 5: Identifying Heat Shield Screws (Bottom Left)

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque 18 32 2AZ .

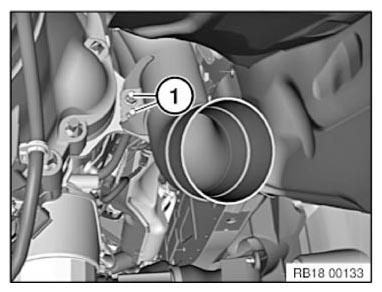

Fig 6: Identifying Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque 18 32 2AZ .

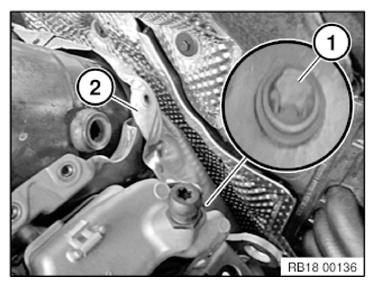

Fig 7: Identifying Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen screws (1) on the catalytic converter cylinders 1-4 on the back of the cylinder head.

Tightening torque 18 32 3AZ .

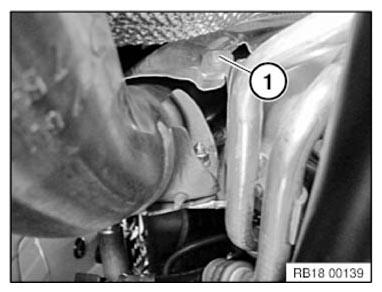

Fig 8: Identifying Screws On Catalytic Converter Cylinders 1-4 On Back Of Cylinder Head

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) on catalytic converter, cylinders 5-8, rear, at cylinder head.

Tightening torque 18 32 3AZ .

Fig 9: Identifying Screws On Catalytic Converter

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen screws (1) on the catalytic converter cylinders 1-4 on the back of the cylinder head.

Tightening torque 18 32 3AZ .

Fig 10: Identifying Screws On Catalytic Converter Cylinders 1-4

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) on catalytic converter, cylinders 5-8, rear, at cylinder head.

Tightening torque 18 32 3AZ .

Fig 11: Identifying Catalytic Converter Screws, Cylinders 5-8 (Rear Cylinder Head)

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) and (3).

Tightening torque 18 32 1AZ .

Remove and replace clamps (2) and (4).

Installation note:

Clamps must be installed with the screws toward the inside (Figure). Otherwise, a top heat shield can no longer be installed.

Fig 12: Identifying Clamps And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

If you can see a gap between the ends of the V-band clamps, release and then repeat the screw connection.

Tightening torque 18 32 1AZ .

Fig 13: Identifying Gap Between Ends Of V-Band Clamps

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

If the ends of the V-band clamps are positioned under each other, release and then repeat the screw connection.

Tightening torque 18 32 1AZ .

Fig 14: Identifying Misalignment Of V-Band Clamp Ends

Courtesy of BMW OF NORTH AMERICA, INC.

1. Remove catalytic converter for cylinders 1-4 (2).
2. Remove catalytic converter for cylinders 5-8 (1).
   Fig 15: Identifying Catalytic Converters

   Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Picture shows the engine removed.

Replace the seals (1) on the exhaust turbocharger.

Fig 16: Identifying Turbocharger Gaskets

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.

Check exhaust system for leaks.
