13 71 174 Removing both air ducts (S63)

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove left CHARGE AIR COOLER .
Remove right INTERCOOLER .
Remove COOLANT FEED AND RETURN PIPES .

Release clamps (1).

Replace clamps.

Release screw (2).

Tightening torque 13 71 5AZ .

Detach right air duct (3) from exhaust turbocharger and remove.

Detach left air duct (4) from exhaust turbocharger and remove.

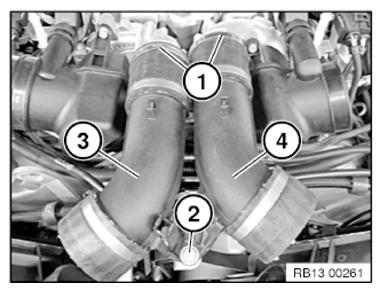

Fig 1: Identifying Air Ducts, Clamps, And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
