13 90 500 Replacing right tank vent valve (S63)

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Check stored fault message.
Switch off ignition.
Remove right INTERCOOLER .

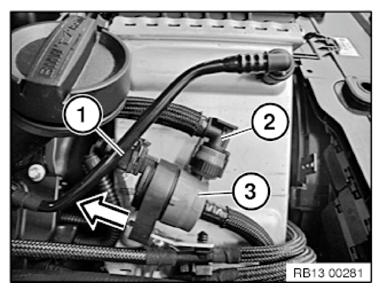

Unlock connector (1) and remove.

Unlock hose (2) and detach.

Pull off tank vent valve (3) from holder.

Fig 1: Pulling Tank Vent Valve From Holder

Courtesy of BMW OF NORTH AMERICA, INC.

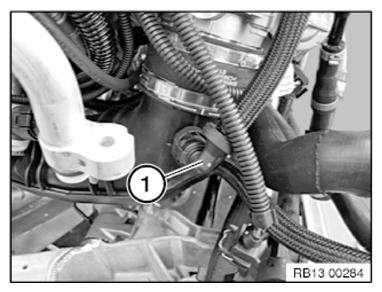

Unlock hose (1) on intake plenum and detach.

Feed out and remove tank vent valve.

Fig 2: Identifying Intake Plenum Hose

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Read out the fault memory of the DME control unit.
Delete fault memory.
