00 00... Steering components: Check for play, damage and, if necessary, tightness

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Checking play:

NOTE: OBSERVE NOTES ON CHECKING THE STEERING BACKLASH !

Check the tie rod backlash only in loaded condition or in the design position.
Checking with front axle raised:
- To evaluate the play of the steering gear, it is necessary to pressurize the steering gear via its servo system!
- The combustion engine must be running during hydraulically or electrically assisted steering for this purpose

Fig 1: Identifying Track Rod Joint And Track-Rod Arm

Courtesy of BMW OF NORTH AMERICA, INC.

Steering wheel:

Move steering wheel back and forth and check for play.

Track rod joint:

There must be no play between the track rod joint (1) and track-rod arm (2).

Check for damage:

Check gaiter, axle and gaiter for damage (e.g. cracks, holes) and leaks.

Check gaiter for missing tensioning straps.

Check for tightness (only for hydraulically supported steering):

Check all visible connections, hoses, lines and steering box for traces of fluid.

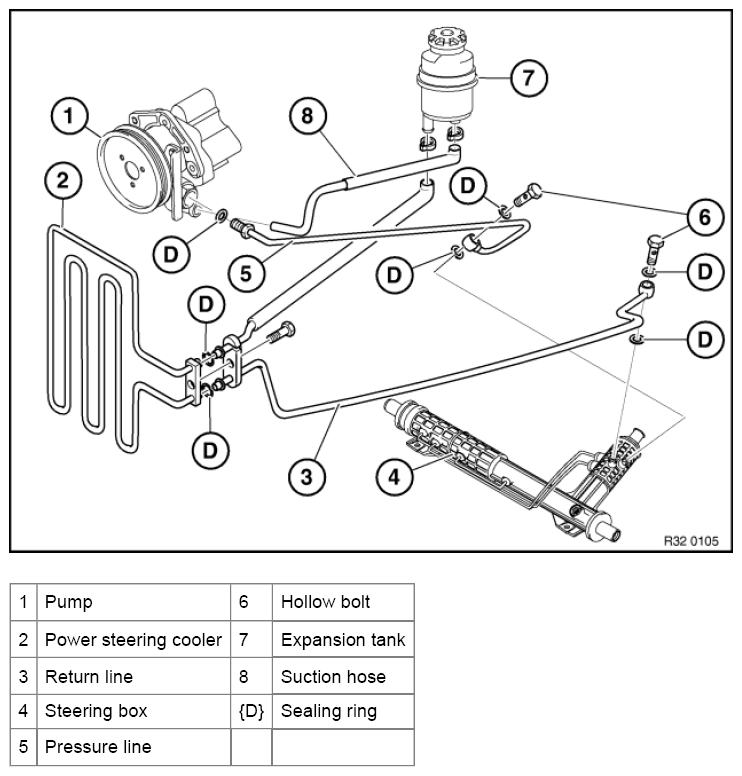

The following image shows the principal arrangement of the hydraulic steering components and lines.
