65 13 188 Removing and installing/replacing rear mid-range speaker (in storage shelf)

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 341

Lift speaker cover (1) out of storage shelf (2) using special tool 00 9 341 .

Fig 1: Lifting Speaker Cover Out Of Storage Shelf Using Special Tool 00 9 341

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Retaining lugs (1) on speaker cover (2) must not be damaged.

Replace speaker cover (2) if damaged.

Make sure speaker cover (2) is fully engaged.

Fig 2: Identifying Speaker Cover Retaining Lugs

Courtesy of BMW OF NORTH AMERICA, INC.

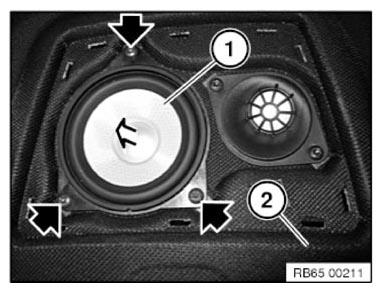

Release screws at marked points.

Remove mid-range speaker (1) upwards from storage shelf (2).

Disconnect associated plug connection and remove mid-range speaker (1).

Fig 3: Removing Mid-Range Speaker Upwards From Storage Shelf

Courtesy of BMW OF NORTH AMERICA, INC.
