65 13 062 Removing and installing/replacing speaker (tweeter, in dashboard)

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

Unclip trim (1) with special tool 00 9 327 from latch mechanisms and remove upwards.

Fig 1: Removing Trim

G10048898

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Retaining lugs and clamps at marked points must not be damaged.

Fig 2: Locating Clamps And Guides

G10048899

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque 65 13 6AZ .

Installation note:

To tighten screws, use special tool 00 9 460 .

Remove the tweeter (2) from the dashboard.

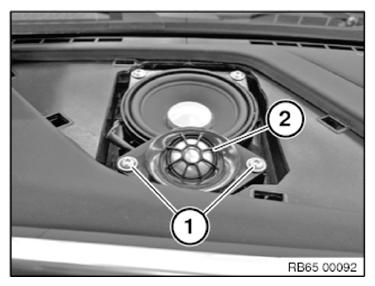

Fig 3: Identifying Tweeter Screws

G10048905

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Make sure resistor (1) is correctly seated in the corresponding bracket.

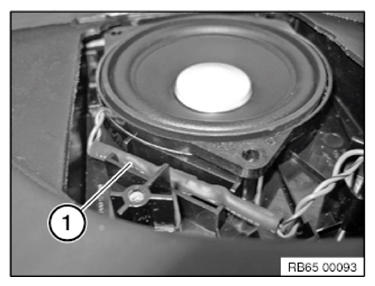

Fig 4: Identifying Resistor

G10048906

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque 65 13 5AZ .

Installation note:

To tighten screws, use special tool 00 9 460 .

Remove mid-range speaker (2) from dashboard (3).

Fig 5: Removing Mid-Range Speaker From Dashboard

G10048900

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (3) from midrange speaker (1).

Remove tweeter (2).

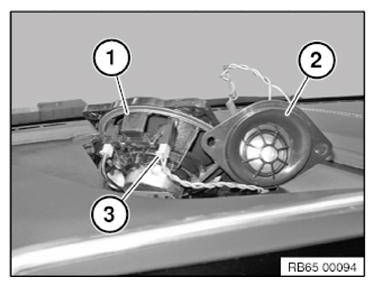

Fig 6: Identifying Tweeter And Midrange Speaker Plug Connection

G10048908
