65 11 075 Removing and installing/replacing DVD changer

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 327

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .

NOTE: Comply with notes on HANDLING OPTICAL FIBRES .

Necessary preliminary tasks:

Disconnect NEGATIVE BATTERY CABLE
Remove TRIM FOR INSTRUMENT PANEL AT BOTTOM RIGHT

Open glove box cover (3).

Unclip trims (1) with a suitable tool and release screws behind.

Using special tool 00 9 327 , press DVD changer (2) down slightly and then pull out forward out of glove box.

Pull DVD changer (2) out of guide.

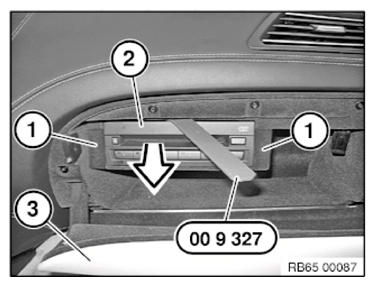

Fig 1: Removing DVD Changer

G10048877

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten plug connection (1) and disconnect.

Remove DVD changer (2).

Installation note:

Insert DVD changer (2).

Pull down wiring harness (3) over opening (4).

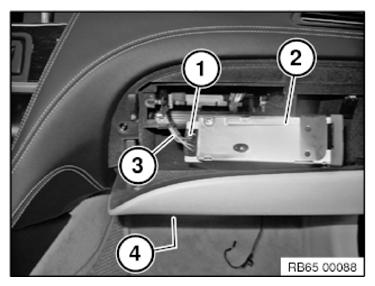

Fig 2: Identifying DVD Changer Plug Connection And Wiring Harness

G10048878

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out VEHICLE PROGRAMMING/CODING .
