65 77 740 Removing and installing (replacing) left front door sensor

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Note AIRBAG SAFETY REGULATIONS !
Incorrect handling can lead to airbag deployment and cause injury.

Necessary preliminary work:

Remove SOUND INSULATION IN FRONT DOOR

Slacken nut (1).

Tightening torque 65 77 4AZ .

Feed out sensor (2) below inner door panel (3).

Unlock associated plug connection and disconnect.

Remove sensor (2).

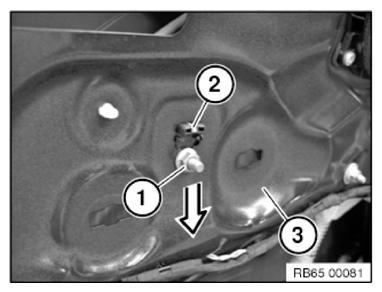

Fig 1: Removing Left Front Door Sensor

Courtesy of BMW OF NORTH AMERICA, INC.
