65 77 720 Removing and installing (replacing) left B-pillar sensor
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
NOTE AIRBAG SAFETY INSTRUCTIONS
!
Incorrect handling can lead to airbag deployment and cause injury.
Incorrect handling can lead to airbag deployment and cause injury.
Necessary preliminary work:
- Disconnect BATTERY CABLE
- Remove REAR SEAT
Release screw.
Tightening torque 65 77 3AZ .

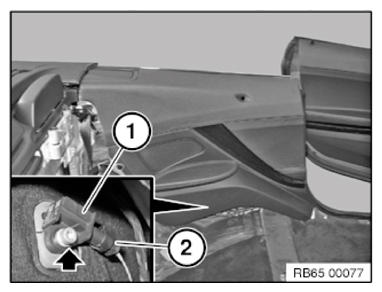

Feed out the B-pillar sensor (1) downwards.
Unfasten plug connection (2) and disconnect.
Installation note:
Make sure sensor is mounted without play.
