65 77 532 Removing and installing/replacing front left sensor (US version only)

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove FRONT LEFT WHEEL ARCH COVER

Release screw (1) on auxiliary radiator holder (2).

Detach holder (2) and carefully remove it from the work area.

Installation note:

Holder (2) must be correctly seated in the designated guides.

Fig 1: Identifying Auxiliary Radiator Holder Screw

G06886504

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Remove the auxiliary water pump including holder.

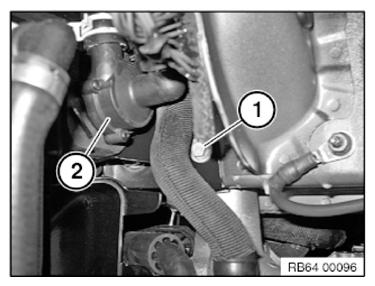

Fig 2: Identifying Auxiliary Water Pump And Screw

G10048956

Courtesy of BMW OF NORTH AMERICA, INC.

Remove the auxiliary water pump (1) from the work area as shown and tie up.

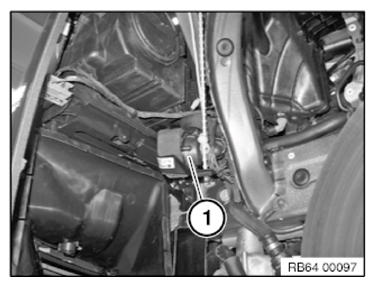

Fig 3: Securing Auxiliary Water Pump Away From Work Area

G10048957

Courtesy of BMW OF NORTH AMERICA, INC.

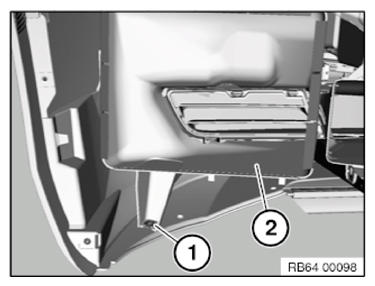

Release screw (1) on air duct (2).

Fig 4: Identifying Air Duct Screw

G10048958

Courtesy of BMW OF NORTH AMERICA, INC.

Fold air duct (4) to one side.

Release screws (3).

Tightening torque 65 77 2AZ .

Feed out sensor (1).

Unfasten plug connection (2) and disconnect.

Installation note:

Make sure sensor (1) is in correct installation position.

Sensor surface must point upwards.

Plug connection (2) must point in opposite direction to direction of travel.

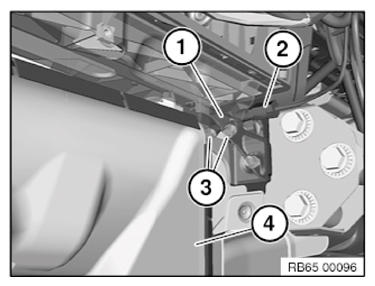

Fig 5: Identifying Air Duct, Screws, Plug Connection, And Sensor
