12 14 611 Removing/replacing the left knock sensors (N63O1)

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Read out the fault memory of the DME control unit.
Switch off ignition.
Remove LEFT INTAKE PLENUM .

Unlock and disconnect connector (1) on both knock sensors.

Release screws on both knock sensors (2).

Tightening torque 13 62 5AZ .

Remove knock sensors (3).

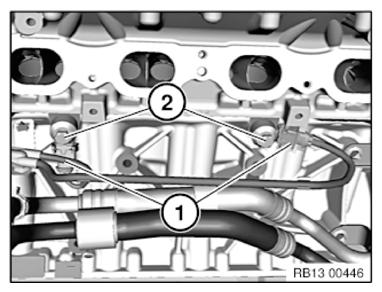

Fig 1: Identifying Knock Sensors, Connectors, And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Clean contact surface of knock sensors on engine block.

Fig 2: Cleaning Contact Surface Of Knock Sensors On Engine Block

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Check stored fault message.
Delete fault memory.
