64 11 273 Replacing water valve for heater (S63)

Special tools required:

• 17 2 050
• 13 5 160

Recycling

Coolant emerges when coolant lines are detached. Have a suitable collecting vessel ready.

Catch and dispose of escaping coolant.

Observe country-specific waste disposal regulations.

Necessary preliminary tasks:

• Remove LEFT INTAKE SILENCER HOUSING

Unfasten tank ventilation line (1) and disconnect.

Set the tank ventilation line (1) aside.

Fig 1: Identifying Tank Ventilation Line

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock and disconnect fuel delivery line (1).

Fig 2: Identifying Fuel Delivery Line

Courtesy of BMW OF NORTH AMERICA, INC.

Seal fuel lines with special tools (1) 13 5 160 and (2) 13 5 162.

Fig 3: Identifying Fuel Lines With Special Tools 13 5 160/13 5 162

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew nuts (2).

Tightening torque 32 41 2AZ .

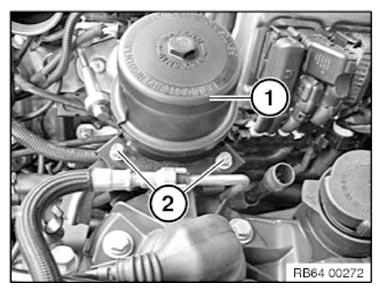

Remove the oil reservoir (1) and set aside.

Fig 4: Identifying Oil Reservoir Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Release hose clips (1) with special tool 17 2 050 and remove coolant hoses.

Disconnect plug connection (2).

Pull water valve (3) upwards out of holders.

Fig 5: Identifying Water Valve Plug Connection Hose And Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Do not  mix up connections of coolant hoses.

Replace damaged coolant hoses.

Installation note:

Make sure rubber mount (1) and guide lug (2) are securely seated in holders (3) on wheel arch body.

Fig 6: Identifying Rubber Mount And Holders Guide Lug

Courtesy of BMW OF NORTH AMERICA, INC.

After installation:

• Fill and vent cooling system  . See 17 00 039 VENTING AND FILLING COOLING SYSTEM WITH VACUUM FILLING UNIT , 17 00 009 CHECKING COOLING SYSTEM FOR WATERTIGHTNESS (N55, N63, N47 D20 O/T 1, N57 D30 U/O/T/S 0/1) or 17 00 005 DRAINING AND TOPPING UP COOLANT (S63 B44 T 0) and check on watertightness
