61 11... Installing repair cable for reversing camera
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.
Read and comply with notes on HANDLING WIRING HARNESSES AND CABLES .
NOTE:
Work is shown by way of example. There may be differences in detail in the case of other vehicle types and equipment specifications.
Remove trim panels.

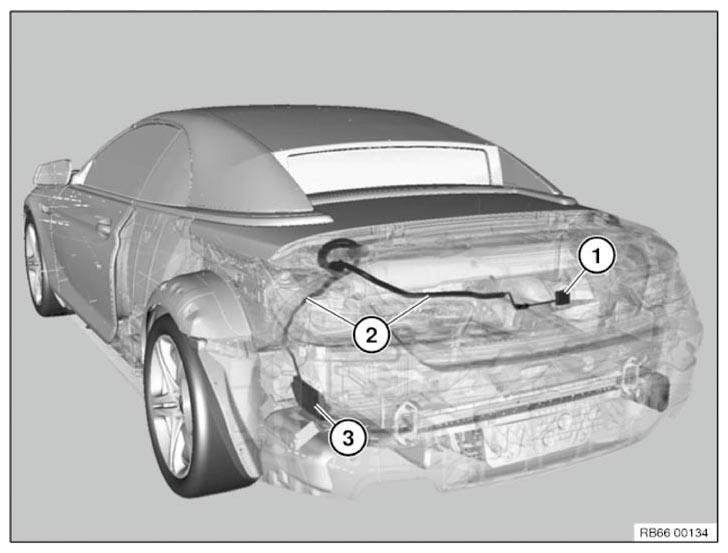

Lay repair cable from reversing camera (1) along wiring harness (2) up to TRSVC control unit (3, middle slot) and secure sufficiently.
After successful completion of function check, detach start and end of faulty cable at first mounting point.
