61 31 310 Replacing brake light switch

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove TRIM PANEL FOR PEDAL MECHANISM .

Disconnect plug connection (1).

Pull brake light switch (2) in direction of arrow out of brake light switch holder (4).

Installation note:

Press brake pedal (3) to floor.
Push brake light switch (2) as far as it will go into brake light switch holder (4).
Counter hold brake light switch (4) holder, slowly return brake pedal (3) to initial position and tighten to stop.

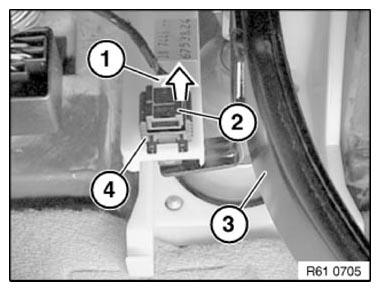

Fig 1: Removing Brake Light Switch
Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Removing brake light switch holder (1):
Press brake pedal.
Unclip brake light switch holder (1) at shanks (2) and remove towards rear.

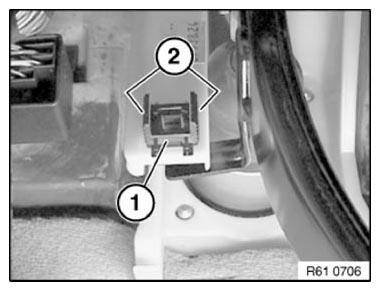

Fig 2: Identifying Brake Light Switch Holder And Shanks

Courtesy of BMW OF NORTH AMERICA, INC.
