61 31 299 Removing and installing/replacing clutch switch module

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove TRIM PANEL FOR PEDAL MECHANISM .

NOTE: For purposes of clarity, clutch master cylinder (2) is shown removed.

Lever out clutch switch module (1) from clutch master cylinder (2) with screwdriver.

Unlock plug (4) and disconnect from housing (3).

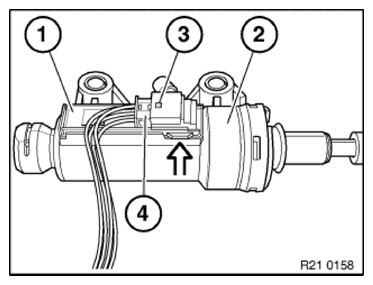

Fig 1: Removing Clutch Switch Module

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Clutch switch module is secured against incorrect installation.

Clutch switch module must snap audibly into place.

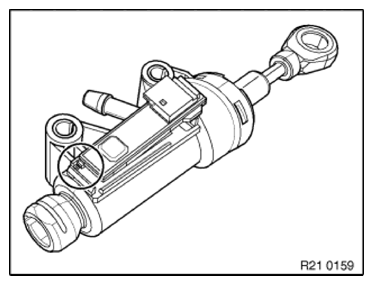

Fig 2: Installing Clutch Switch Module

Courtesy of BMW OF NORTH AMERICA, INC.
