61 31 233 Removing and installing/replacing engine electrical system for lane departure warning (M Sport steering wheel)

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Release screws (1) on steering wheel.

Release screw (2) on rear side of steering wheel.

Remove design cover.

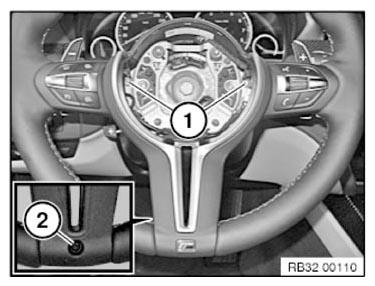

Fig 1: Identifying Design Cover Screws
G10064197Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1).

Carefully unlock retaining clip (2) on latch mechanisms (3) with suitable tool (e.g. screwdriver with 3-mm blade).

NOTE: The unlocking procedure is simplified by pressing down the retaining clip (2).

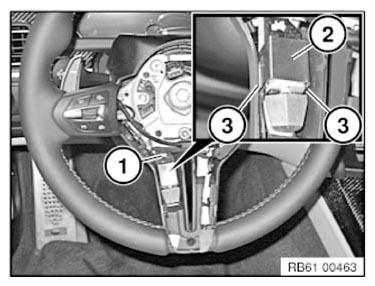

Fig 2: Identifying Retaining Clip, Latch Mechanisms, And Plug Connection
G10064198Courtesy of BMW OF NORTH AMERICA, INC.

Remove engine electrical system of Lane Departure Warning (1) from steering wheel (2) in direction of arrow.

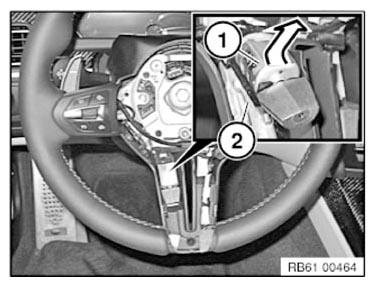

Fig 3: Removing Engine Electrical System Of Lane Departure Warning
G10064199Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Retaining clip (2) and guides (1) on engine electrical system of Lane Departure Warning (3) must not be damaged or missing.

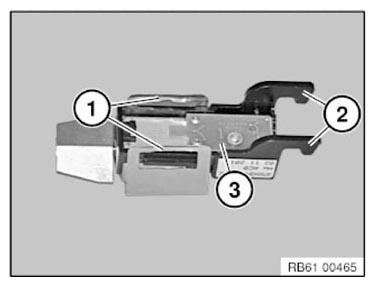

Fig 4: Identifying Retaining Clip, Guides, Engine Electrical System Of Lane Departure Warning
G10064200Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

First press down retaining clip (1) in area (A) until it engages. Then press down in area (B) until it engages.

Make sure engine electrical system of Lane Departure Warning is correctly seated.

Make sure plug connection (2) is correctly locked.

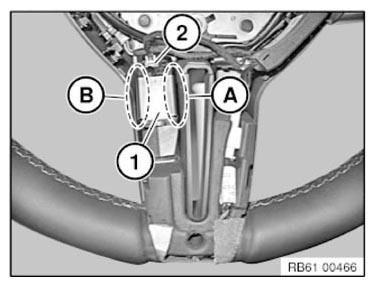

Fig 5: Installing Engine Electrical System Of Lane Departure Warning
G10064201Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

From version 03/2009 onwards, the engine electrical system must be adjusted.

For the adjustment, the resonance frequency stamped on the actuator is required. Note the resonance frequency of the new part.

The service module "Adjustment actuator Lane Departure Warning" can be found at:
