61 31 231 Removing and installing/replacing steering wheel module (M Sport steering wheel)

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove AIRBAG UNIT

Release screws (1) on steering wheel.

Release screw (2) on rear side of steering wheel.

Remove design cover.

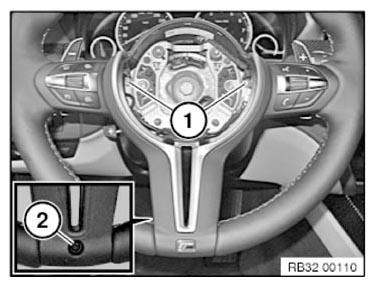

Fig 1: Identifying Design Cover Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1).

Release steering wheel module (2) from bracket.

Release underlying plug connector (3) from bracket and disconnect.

Remove steering wheel module (2).

Installation note:

Make sure cables are correctly routed.

Make sure the plug connections (1; 3) are correctly locked.

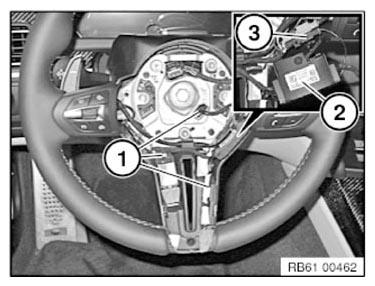

Fig 2: Identifying Plug Connection, Steering Wheel Module, And Underlying Plug Connector

Courtesy of BMW OF NORTH AMERICA, INC.

Make sure steering wheel module (2) and plug connection (3) are correctly seated in bracket.
