61 31 231 Removing and installing/renewing steering wheel module control unit

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .

Necessary preliminary tasks:

Remove airbag unit. See REMOVING AIRBAG UNIT or REMOVING AIRBAG UNIT (SPORT STEERING WHEEL) .

NOTE: Steering wheel cover is shown removed for purposes of clarity.

Remove control unit for steering wheel module (1) from steering wheel (2) in direction of arrow.

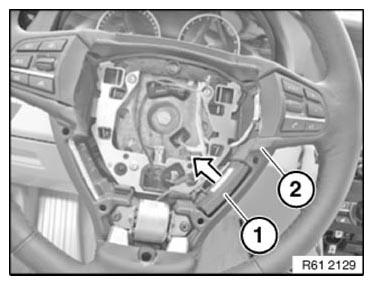

Fig 1: Removing Control Unit For Steering Wheel Module

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1).

Remove steering wheel electronics control unit (2).

Installation note:

Make sure electronic steering wheel module (2) is fitted correctly.

Fig 2: Identifying Steering Wheel Electronics Control Unit And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.
