61 31 221 Removing and installing/replacing both multifunction steering wheel switches

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove airbag unit. See REMOVING AIRBAG UNIT or REMOVING AIRBAG UNIT (SPORT STEERING WHEEL) .
Release both shift paddles if necessary

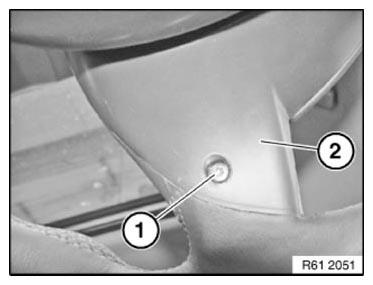

Release screws (1) on left/right on back of steering wheel (2).

Fig 1: Identifying Steering Wheel Screws

Courtesy of BMW OF NORTH AMERICA, INC.

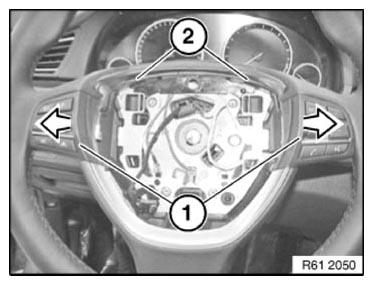

NOTE: Both multifunction steering wheel switches (1) are connected to each other by the wiring harness (2).

Feed wiring harness (2) out of steering wheel.

Remove both multifunction steering wheel switches (1) in direction of arrow.

Fig 2: Removing Multifunction Steering Wheel Switches

Courtesy of BMW OF NORTH AMERICA, INC.

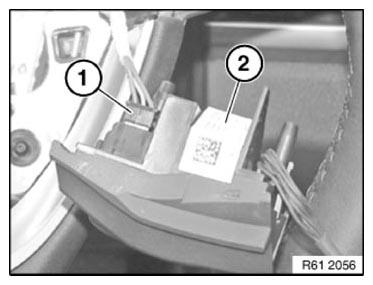

Disconnect plug connection (1) and remove both multifunction steering wheel switches (2).

Installation note:

Make sure electrical wiring is correctly routed.

Fig 3: Identifying Multifunction Steering Wheel Switches And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.
