61 31 132 Removing and installing/replacing the shift paddles for the transmission (M Sport steering wheel)

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove AIRBAG UNIT

Release screws (1) on steering wheel.

Release screw (2) on rear side of steering wheel.

Remove design cover.

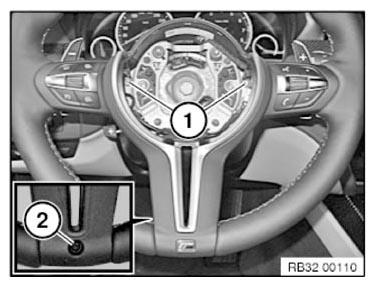

Fig 1: Identifying Design Cover Screws

G10064227

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Steering wheel is shown removed for purposes of clarity.

Release the screws (1) and feed out the wiring harness (2).

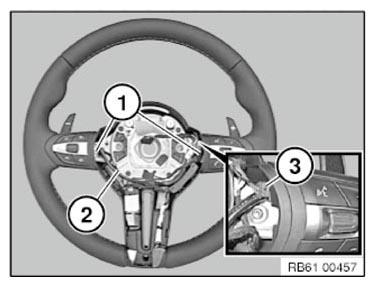

Fig 2: Identifying Wiring Harness, Plug Connection, And Screws

G10064228

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Steering wheel is shown removed for purposes of clarity.

Pull the steering wheel module (2) out of the steering wheel.

Release the plug connections (1, 3) from the steering wheel and disconnect.

Installation note:

Make sure electrical wiring is correctly routed.

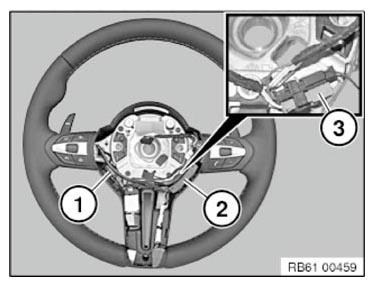

Fig 3: Identifying Steering Wheel Module Plug Connections

G10064229

Courtesy of BMW OF NORTH AMERICA, INC.

Make sure the plug connections (1, 3) are correctly seated.

Ensure that the steering wheel module (2) is correctly seated.

NOTE: Steering wheel is shown removed for purposes of clarity.

Feed out the cable though the steering wheel spokes (1) and take off the shift paddles.

Installation note:

Make sure electrical wiring is correctly routed.

Ensure that the shift paddles are correctly seated.

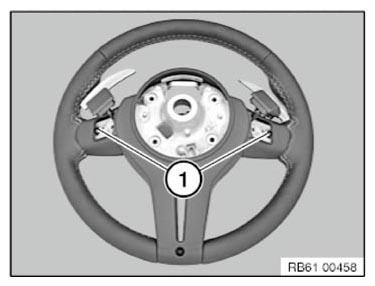

Fig 4: Identifying Screws

G10064230

Courtesy of BMW OF NORTH AMERICA, INC.
