61 31 118 Replacing front passenger power windows switch

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 340

IMPORTANT: Carry out the following operation carefully so as to avoid damaging the door trim panel and switch cover.
If necessary, tape off working area.

Lever out switch cover with switch for power window regulator (1) from armrest using special tool 00 9 340 .

Disconnect associated plug connection and remove switch cover with switch for power window regulator (1).

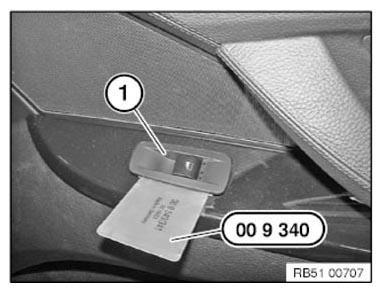

Fig 1: Removing Switch Cover Using Special Tool (00 9 340)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Retaining lugs (1) must not be damaged.

Make sure power window switch (2) is correctly seated.

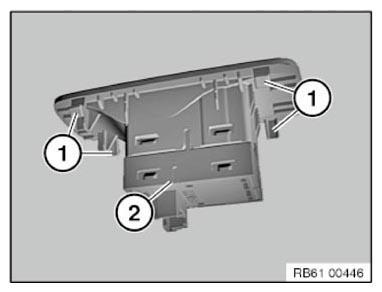

Fig 2: Identifying Power Window Switch And Retaining Lugs

Courtesy of BMW OF NORTH AMERICA, INC.

Release switch for power window regulator (1) at latch mechanisms (2) on both sides and pull it out of switch cover (3).

Installation note:

Latch mechanisms (2) must not be damaged or missing.

Make sure power window switch (1) is correctly seated in switch cover (3).

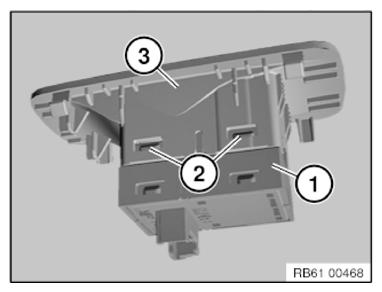

Fig 3: Identifying Power Window Switch, Latch Mechanisms, And Switch Cover

Courtesy of BMW OF NORTH AMERICA, INC.
