61 31 113 Removing and installing/replacing both shift paddles for automatic transmission
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove airbag unit. See REMOVING AIRBAG UNIT or REMOVING AIRBAG UNIT (SPORT STEERING WHEEL) .

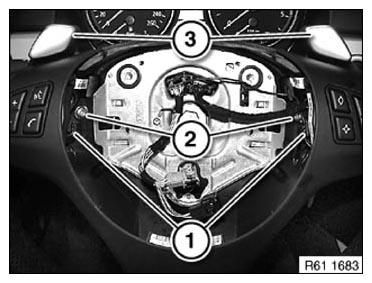

Disconnect plug connection (1).
Unfasten screws (2).
Remove shift paddles for automatic transmission (3) in direction of travel.
Installation note:
Make sure electrical wiring is correctly routed.
Make sure shift paddles for automatic transmission are correctly seated on steering wheel.
