61 31 066 Removing and installing/replacing hotel setting switch

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 317

NOTE: Open center armrest storage compartment.

NOTE: The graphic shows the F12.

Lift hotel position switch (1) in direction of arrow out of housing (2) using special tool 00 9 317 .

Disconnect plug connection underneath and remove hotel position switch (1).

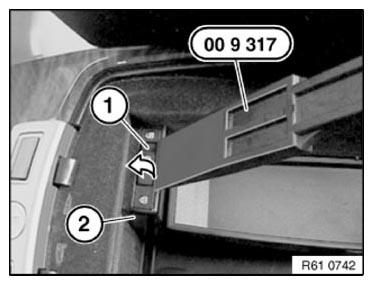

Fig 1: Removing Hotel Position Switch Using Special Tool (00 9 317)

Courtesy of BMW OF NORTH AMERICA, INC.
