61 31 038 Removing and installing/replacing switch for front passenger airbag deactivation

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove SIDE PANEL ON DASHBOARD

Release latch mechanisms (3) in direction of arrow.

Feed switch for front passenger airbag deactivation (2) out of side cover on dashboard (1).

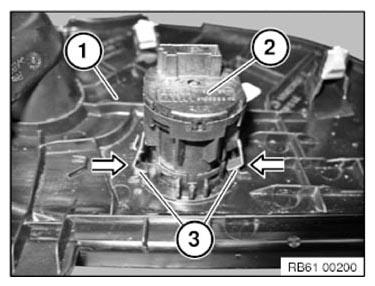

Fig 1: Identifying Passenger Airbag Switch, Dashboard Side Cover, And Latch Mechanisms

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Switch cutout of dashboard side panel (1) is provided with a position code.

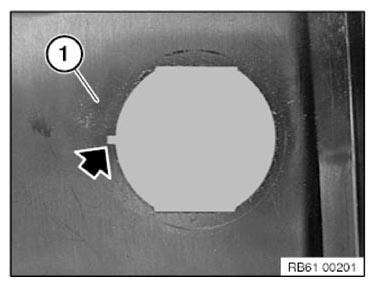

Fig 2: Identifying Cutout For Switch In Dashboard Side Panel

Courtesy of BMW OF NORTH AMERICA, INC.
