61 31 035 Removing and installing/renewing steering column adjustment switch

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Unlock steering column adjustment switch (1) on both sides and press out from steering column shroud (2).

Installation note:

Make sure steering column adjustment switch (1) is correctly seated

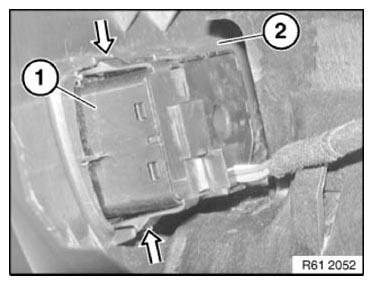

Fig 1: Removing Steering Column Adjustment Switch
G10064178Courtesy of BMW OF NORTH AMERICA, INC.
