61 31 021 Removing and installing/replacing emergency starting coil
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:

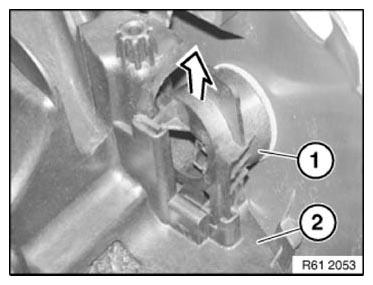

Release emergency starting coil (1) and pull in direction of arrow out of steering column shroud (2).
Installation note:
Make sure emergency starting coil (1) is correctly seated.
