61 31 008 Removing and installing steering column switch cluster (SZL)
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Move wheels into straight-ahead position and do not alter this position during the repair work.
Do not under any circumstances turn the steering column switch cluster when the steering wheel is removed.
Do not under any circumstances turn the steering column switch cluster when the steering wheel is removed.
Necessary preliminary work:
- Remove steering wheel. See REMOVING STEERING WHEEL or REMOVING SPORT STEERING WHEEL .

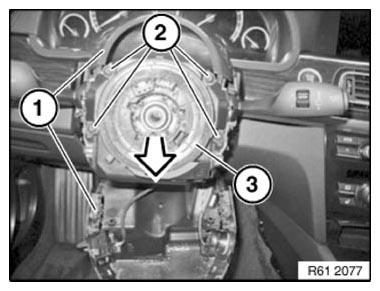

Unclip steering column shroud upper section and lower section (1).
Unfasten screws (2).
Tightening torque 61 31 3AZ .
Remove steering column switch cluster (3) in direction of arrow.
Installation note:
Not applicable to F25.
Carry out STEERING ANGLE SENSOR ADJUSTMENT .
On vehicles with active steering, steering angle sensor adjustment is performed by means of START-UP/ALIGNMENT of the active steering.

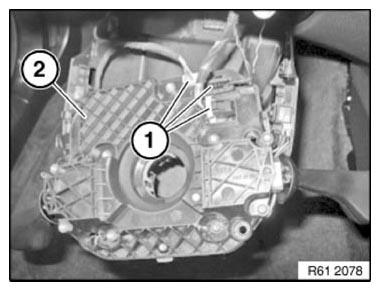

Disconnect plug connection (1).
Remove steering column switch cluster (2).
Replacement:
Not applicable to F25.
- Carry out STEERING ANGLE SENSOR ADJUSTMENT
- Vehicles with active steering:
- Steering angle sensor adjustment is performed by means of START-UP/ADJUSTMENT of active front steering
