61 13... Socket housings, 5-pin, 8-pin, System MQS/MPQ

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Manufactured by AMP: The following contact types without strand sealing can be fitted in the connector housings:

MQS (Micro Quadlock System)
MPQ, width 2.8 mm (Micro Power Quadlock)
MPQ, width 5.2 mm (Micro Power Quadlock)

Socket housing, 5-pin (Hybrid System MQS/MPQ)

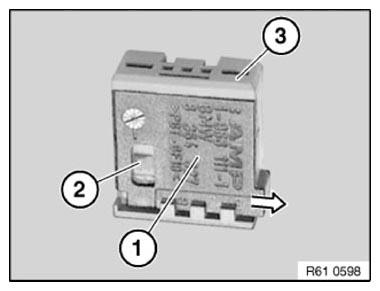

Raise fastener (1) over retaining lug (2) and pull off from contact carrier (3).

Fig 1: Identifying Retaining Lug, Fastener, And Contact Carrier - 5-Pin (Hybrid System MQS/MPQ)

Courtesy of BMW OF NORTH AMERICA, INC.

Socket housing, 8-pin (MQS):

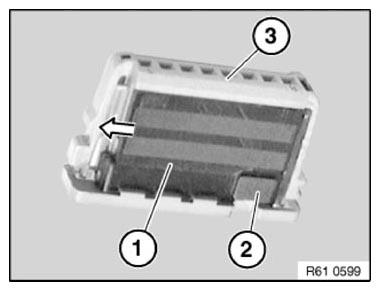

Raise fastener (1) over retaining lug (2) and pull off from contact carrier (3).

Fig 2: Identifying Fastener, Retaining Lug, And Contact Carrier - 8-Pin (MQS)

Courtesy of BMW OF NORTH AMERICA, INC.

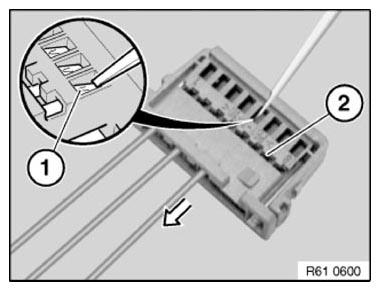

Hold down retaining hook (1) of contact and pull cable with contact as far as secondary lock (2).

Fig 3: Identifying Retaining Hook And Secondary Lock

Courtesy of BMW OF NORTH AMERICA, INC.

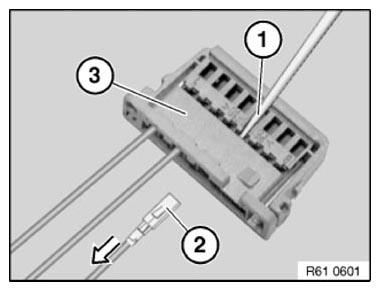

Hold down retaining hook in secondary lock (1) again and pull cable with contact (2) completely out of contact carrier (3).

Fig 4: Pulling Cable With Socket Contact Completely Out Of Contact Carrier

Courtesy of BMW OF NORTH AMERICA, INC.
