61 13... Socket housing 42-, 43-pin, Hybrid System MQS/MPQ

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

61 0 312

Manufactured by AMP: The following contact types without strand sealing can be fitted in the socket housings:

MQS (Micro Quadlock System)
MPQ, width 2.8 mm (Micro Power Quadlock)
MPQ, width 5.2 mm (Micro Power Quadlock)

Open secondary locks (1) on socket housing.

Press back retaining hook of MQS contacts (2) with special tool 61 0 312 61 1 134 and pull out cable with contact.

Press back retaining hook of MPQ contacts (3) with screwdriver and pull out cable with contact.

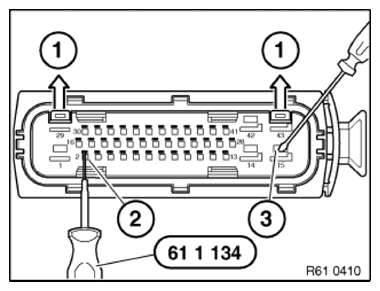

Fig 1: Pressing Retaining Hooks

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Bend open retaining hook of contacts gently before inserting into connector housing.

For installation of contacts, observe chamber numbers on reverse side of socket housing.

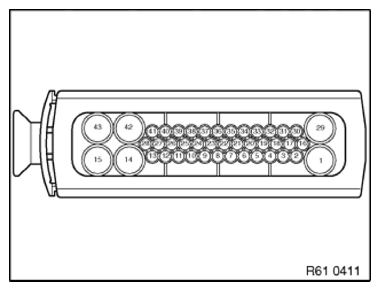

Fig 2: Identifying Chamber Numbers On Reverse Side Of Socket Housing

Courtesy of BMW OF NORTH AMERICA, INC.
