61 13... Inline plugs, 4-, 10-pin, System Elo

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

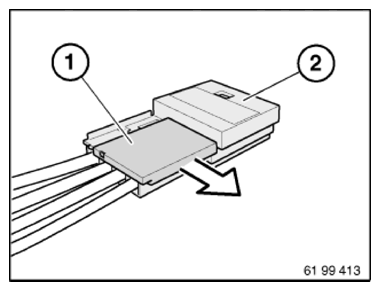

Detach fastener (1) from contact carrier (2).

Fig 1: Detaching Fastener From Contact Carrier

Courtesy of BMW OF NORTH AMERICA, INC.

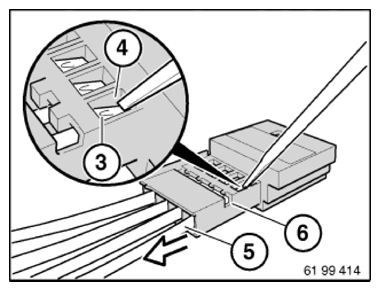

Hold down retaining hook (3) of defective contact and pull cable and contact up to secondary lock (6).

Fig 2: Holding Down Retaining Hook Of Defective Contact

Courtesy of BMW OF NORTH AMERICA, INC.

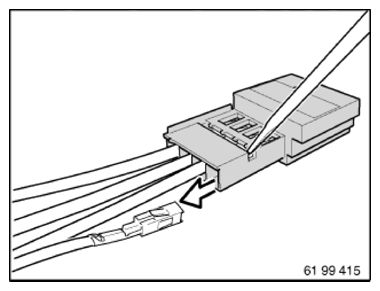

Hold down retaining hook once again in secondary lock and pull cable and contact completely out of contact carrier.

Fig 3: Pulling Cable And Contact Out Of Contact Carrier

Courtesy of BMW OF NORTH AMERICA, INC.
