61 13... Inline connectors, 6-, 8-pin, System MQS

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

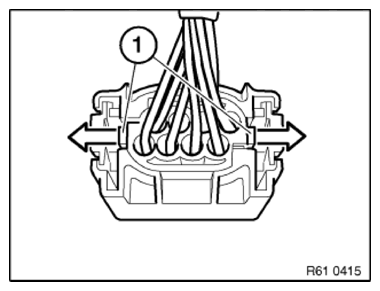

Press lock (1) in direction of arrow and slide connector forward.

Fig 1: Pressing Connector Lock
G10064041Courtesy of BMW OF NORTH AMERICA, INC.

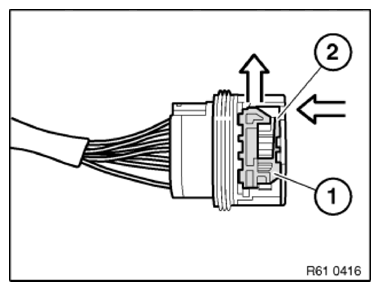

Press locking hook (2) downward and slide lock (1) out.

Fig 2: Sliding Lock Out
G10064042Courtesy of BMW OF NORTH AMERICA, INC.

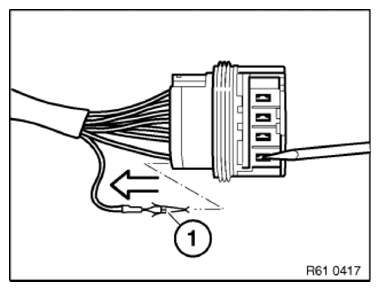

Press down retaining hook (1) with screwdriver and pull out cable with contact towards rear.

Fig 3: Pressing Retaining Hook Using Screwdriver
G10064043Courtesy of BMW OF NORTH AMERICA, INC.
