61 13... In-line plugs, 6- to 50-pin, System Elo

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

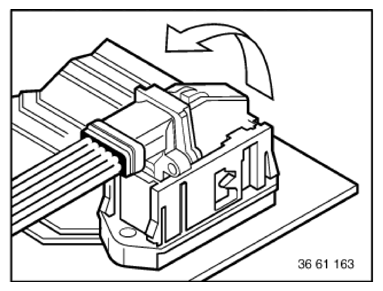

Open lock.

Fig 1: Opening Connector Lock

G10064032

Courtesy of BMW OF NORTH AMERICA, INC.

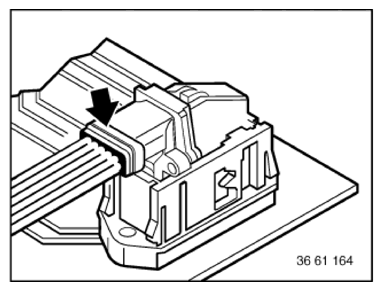

Detach cable strap.

Installation note:

Cable strap must be reinstalled.

Fig 2: Identifying Cable Strap

G10064033

Courtesy of BMW OF NORTH AMERICA, INC.

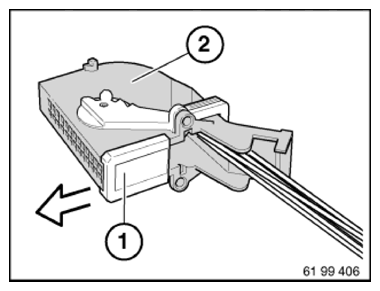

Detach catch (1) from connector housing (2).

Fig 3: Detaching Catch From Connector Housing

G10064034

Courtesy of BMW OF NORTH AMERICA, INC.

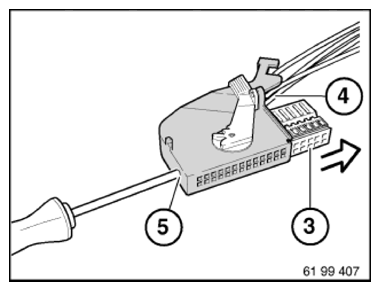

Press out contact carrier (3) with wiring harness (4) through opening (5).

Fig 4: Pressing Out Contact Carrier With Wiring Harness Through Opening

G10064035

Courtesy of BMW OF NORTH AMERICA, INC.

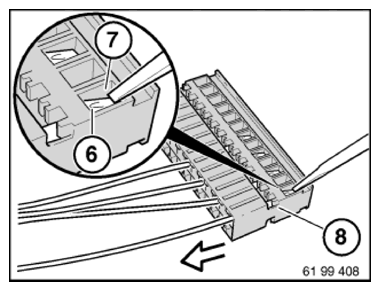

Hold down retaining hook (6) of defective contact and pull cable and contact up to secondary lock (8).

Fig 5: Identifying Retaining Hook And Secondary Lock

G10064036

Courtesy of BMW OF NORTH AMERICA, INC.

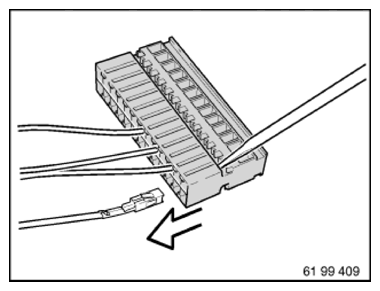

Hold down retaining hook once again in secondary lock (8) and pull cable and contact completely out of contact carrier.

Fig 6: Pulling Cable And Contact From Contact Carrier

G10064037
