61 13... In-line plugs, 24-pin, Hybrid System MQS/MPQ

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Manufactured by AMP: The following contact types without strand sealing can be fitted in the connector housings:

MQS (Micro Quadlock System)
MPQ, width 2.8 mm (Micro Power Quadlock)
MPQ, width 5.2 mm (Micro Power Quadlock)

Socket housing:

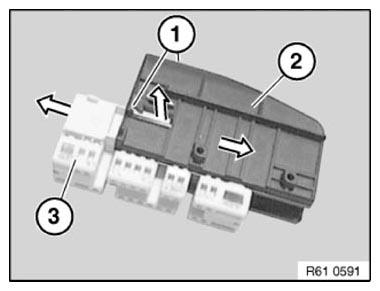

Press locks (1) on protective cap (2) upwards on both sides.

Detach protective cap from contact carrier (3).

NOTE: Detaching the protective cap releases the secondary locks of the socket contacts.

Fig 1: Detaching Cap From Contact Carrier

Courtesy of BMW OF NORTH AMERICA, INC.

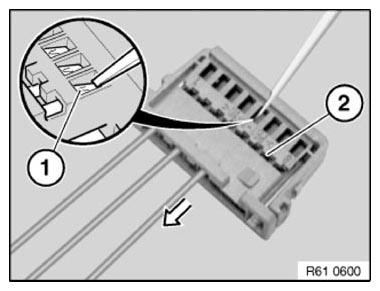

Hold down retaining hook (1) of socket contact in opening of contact carrier with a small screwdriver.

Pull wire with socket contact in direction of arrow as far as secondary lock (2).

Fig 2: Identifying Retaining Hook And Secondary Lock

Courtesy of BMW OF NORTH AMERICA, INC.

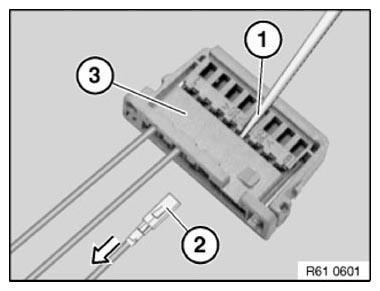

Hold down retaining hook in secondary lock (1) again and pull cable with socket contact (2) completely out of contact carrier (3).

Fig 3: Pulling Cable With Socket Contact Completely Out Of Contact Carrier

Courtesy of BMW OF NORTH AMERICA, INC.

Pin housing:

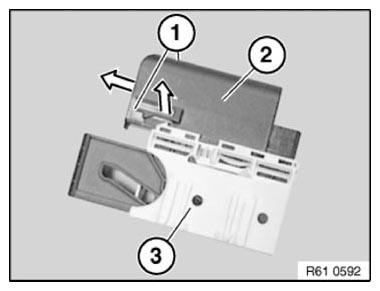

Press locks (1) on protective cap (2) upwards on both sides.

Detach protective cap from housing carrier (3).

NOTE: Detaching the protective cap releases the secondary locks of the pin contacts in the contact carriers.

Fig 4: Detaching Cap From Housing Carrier

Courtesy of BMW OF NORTH AMERICA, INC.

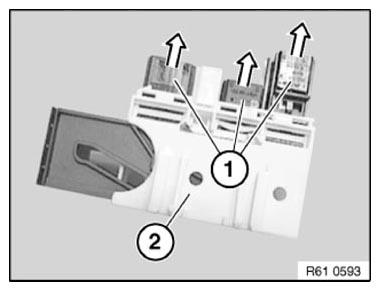

Pull contact carrier (1) out of housing carrier (2).

The pin contacts are pulled out of a contact carrier as described under "Socket housing".

Fig 5: Pulling Contact Carrier Out Of Housing Carrier

Courtesy of BMW OF NORTH AMERICA, INC.
