61 13... In-line plugs, 2-pin, System MDK 3 plus 2.8

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

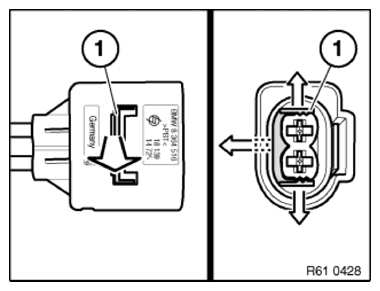

Unlock lock (1) on outside at retaining hook and slide out lock (1) to side.

Fig 1: Sliding Out Lock To Side
G10064020Courtesy of BMW OF NORTH AMERICA, INC.

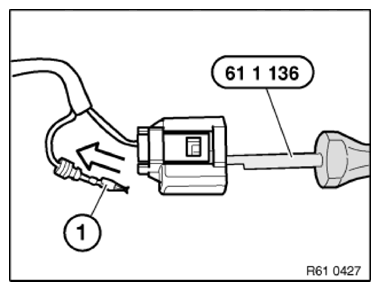

With special tool 61 0 316 (61 1 136), unlock contact and pull out cable with contact (1) towards rear.

Fig 2: Unlocking Contact And Pulling Out Cable
G10064021Courtesy of BMW OF NORTH AMERICA, INC.
