61 13... Connector housing, LCC contact (load current contact)

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

61 0 317

Socket housing:

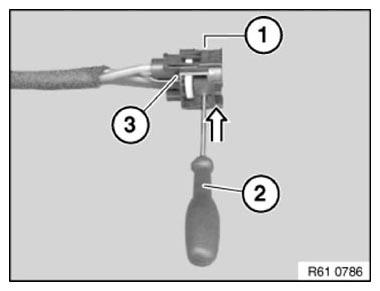

Press lock (1) with suitable tool (2) in direction of arrow out of socket housing (3).

Fig 1: Pressing Connector Lock Using Tool

G10063967

Courtesy of BMW OF NORTH AMERICA, INC.

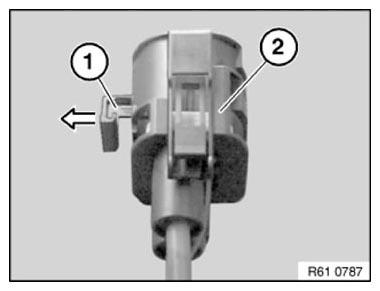

Pull lock (1) out of socket housing (2).

Fig 2: Pulling Lock Out Of Socket Housing

G10063968

Courtesy of BMW OF NORTH AMERICA, INC.

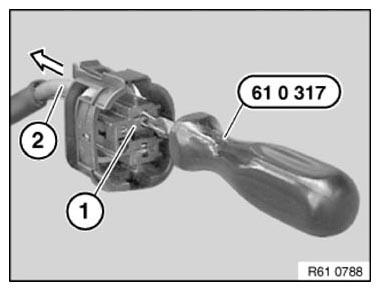

Insert special tool 61 0 317 into socket housing (1) and pull out wiring with LCC contact (2) in direction of arrow.

Fig 3: Inserting Special Tool (61 0 317) Into Socket Housing

G10063969

Courtesy of BMW OF NORTH AMERICA, INC.

Pin housing:

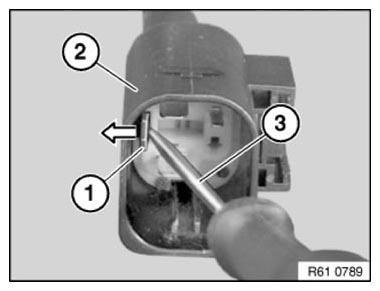

Unlock locking slide (1) of pin housing (2) with suitable tool (3) in direction of arrow.

Fig 4: Unlocking Pin Housing Locking Slide

G10063970

Courtesy of BMW OF NORTH AMERICA, INC.

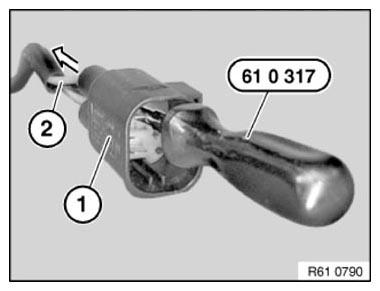

Insert special tool 61 0 317 into pin housing (1) and pull out wiring with LCC contact (2) in direction of arrow.

Fig 5: Inserting Special Tool (61 0 317) Into Pin Housing

G10063971

Courtesy of BMW OF NORTH AMERICA, INC.
