61 13... Circular plugs, 4-, 7-, 10-12-, 25-pin, System D1.5/D2.5

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

61 0 303

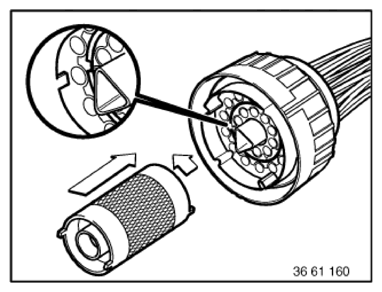

Insert special tool with suitable connection side in connector and twist approx. 3° counter-clockwise.

Fig 1: Inserting Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

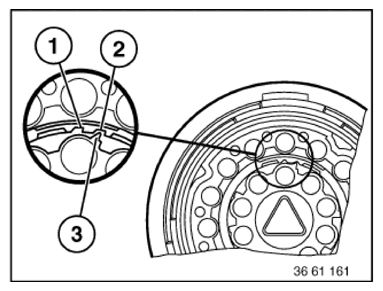

The connector is locked down if retaining lug (3) is located in locking groove (2).

Unlocking groove
Locking groove
Retaining lug

Fig 2: Identifying Retaining Lug, Locking Groove, And Unlocking Groove
Courtesy of BMW OF NORTH AMERICA, INC.

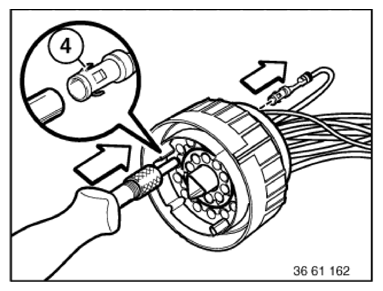

With special tool 61 0 303 press back retaining hook (4) of corresponding contact and pull out cable with contact.

Fig 3: Pressing Retaining Hook Using Special Tool (61 0 303)

Courtesy of BMW OF NORTH AMERICA, INC.
