61 13... Circular connector, 7-pin, 8-pin, system D2.5

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

61 0 303

Carefully pull off rubber grommet (1).

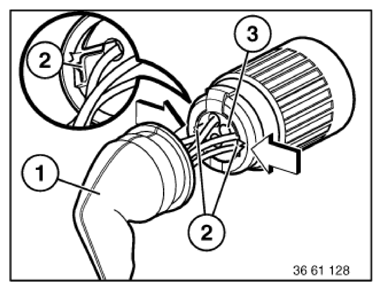

Carefully press back retaining tabs (2) of internal connector (3).

Fig 1: Pressing Back Retaining Tabs Of Internal Connector

Courtesy of BMW OF NORTH AMERICA, INC.

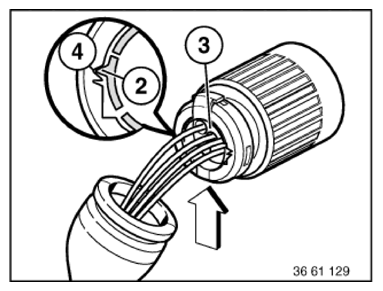

Slide internal connector (3) in direction of arrow until retaining tabs (2) lock into locking groove (4).

Fig 2: Locking Retaining Tabs Into Locking Groove

Courtesy of BMW OF NORTH AMERICA, INC.

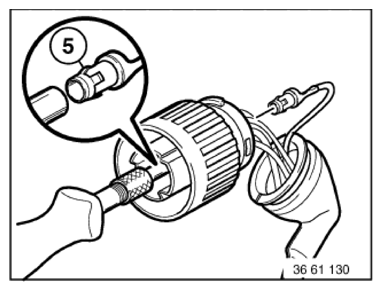

Use special tool 61 0 303 (61 1 132) to press back retaining hook (5) of corresponding contact and pull out cable with contact.

Fig 3: Pressing Retaining Hook Using Special Tool (61 0 303)

Courtesy of BMW OF NORTH AMERICA, INC.
