61 13 042 Replacing power distribution box (luggage compartment)

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Observe SAFETY INFORMATION for handling the vehicle battery.

Necessary preliminary tasks:

Disconnect BATTERY CABLE
Partially remove luggage compartment wheel arch panel on right

Unfasten plug connection (1) and disconnect.

Unscrew nuts (2).

Remove power distribution box (3).

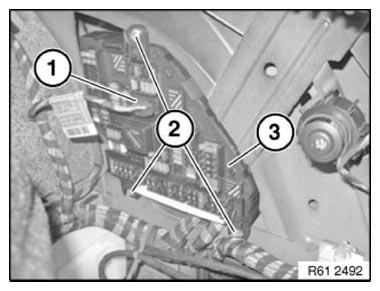

Fig 1: Identifying Power Distribution Box, Plug Connection, And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock all plug connections and disconnect.

Remove power distribution box (1).

Installation note:

Ensure correct cable routing.

Ensure that the power distribution box (1) is correctly seated.

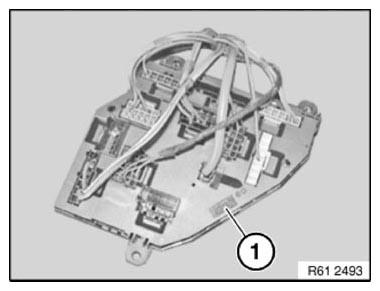

Fig 2: Identifying Power Distribution Box

Courtesy of BMW OF NORTH AMERICA, INC.
